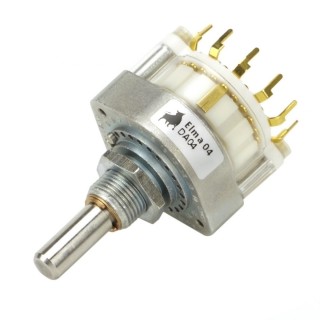

Elma Rotary switch Type 04 PCB Pins 1 Wafer 1 x 12 Non-Shorting 30° endless

110,34 €
(92,72 € excl. vat)
Scale price:
  • from 10: 108,13 €*
  • from 20: 104,82 €*
  • from 50: 99,30 €*
* Price per unit
Scale price:
  • from 10: 108,13 €*
  • from 20: 104,82 €*
  • from 50: 99,30 €*
* Price per unit
including VAT., plus shipping
  • In stock!
  • Stock: More than 10 available
  • Shipping time: 1 - 2 workdays
Order Now
Please select
  • Pins
  • Wafers, Poles & Positions

Category
Manufacturer
Item no.
  • DA-04-1104-20
Product weight
  • 0,04 kg
Shipping weight
  • 0,10 kg
Switching mode
Pin type

Description

Very robust and versatile 24 Position Multi Wafer Selector Switch.

Very robust and versatile Selector Switch up to 24 Positions.

Elma Type 04 switches are a configurable general purpose audio switches with changeable start and an end stop pin and endless turning versions as well. We have also stop pins available if you only like to have 11 or less positions within a 15° or 30° switching angle, you can set the stop pin wherever you like to have the end stop for this switch set to the position you like to make the switch stop.

  • Up to 24 Positions multi wafer selector switch
  • Very robust and versatile
  • 25,000 switching cycles with up to 20.0 Ncm switching torque
  • Torque: 1,5Ncm, 8Ncm (standard), 15Ncm, 20Ncm
  • Gold plated contacts: 3 micron
  • Robust metal housing with metal shaft
  • Optional IP68 front panel sealing
  • Operating temperature range: -40 to +85°C
  • Various options and customization
  • Switchingmode: 15° Indexing angle for shorting versions and 30° for non-shorting versions.
  • 6mm shaft

Elma 04 Switch Angles

This rotary switch is also available as concentric version. Please get in contact with us - we will make an offer for you for the concentric version.
