Gotham Audio 200m Coil, Type 16302 GAC-2pair foil AES Foil shielded Digitalcable im AES/EBU-Format
Description
Digital installation cable for AES/EBU digital audio signlike. Precise impedance run over the whole cable with quad-twised strands (5). Large conductor diameter for accurate attenuation without skin-effect disurbances. Aluminium-foil is melt with jacket for easy removal of the shield with one handling. Drain wire for quick groand connection. Solid wire connection to IDT strips (such as Krone).
Foil Shielded Digital 110 Ohm AES Multipair GAC-2pair foil AES 200 m Purple

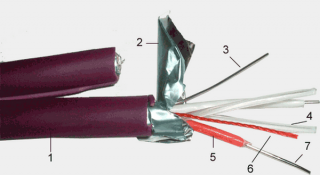

Cable specifications: |
||
| 1 = Sheath: | PVC, Ø 4.5 mm X 9.2 mm purpur | |
| 2 = Shield: | PVC Aluminium Folie | |
| 3 = Beilauflitze: | CU-Draht, verzinnt , Ø 0.4 mm | |
| 4 = Stabilisationselement: | 'PP', braded | |
| 5 = isolation: | Foam-skin 'PE', Ø 1.3mm, rot und white | |
| 6 = Identifikationsfaden: | rot (rechts) oder gelb (links) | |
| 7 = Conductor: | CU-Draht, verzinnt , Ø 0.5 mm (0.19mm²) | |
Technische Daten: |
||
| Conductor resistance: | < 90 ohm/km | |
| Betriebsdämpfung: | bei 1 MHz: | < 2.5 dB/km |
| bei 6 MHz: | < 6.5 dB/km | |
| isolationsresistance: | < 10 GOhm/km | |
| Capacity: | < 40 nF/km | |
| < 113 Ohm/km | ||
| Temperature range: | flexi-installation: | -5° to +50° C |
| fix-installation: | -30° to +70° C | |
