Hammond Power PCB 5VA 115/230 183F12

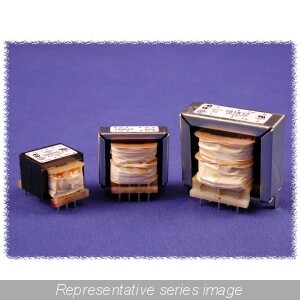

Hammond Power Transformer 10VA 115/230V 160G120
Category
Manufacturer
Item no.
- HA-160G120
Product weight
- 0,25 kg
Shipping weight
- 0,25 kg
Application
Interesting items
Description
Features
- 20 output voltages to choose from (5 - 120VAC R.M.S.)
- Six VA size models available from - .5 to 24 VA
- Vertical mount, split bobbin design.
- 1.2, 4.4, 10, 24 VA models are non-concentric wound.
- 0.5 and 1 VA are both concentric wound.
- Low primary to secondary coupling - no electrostatic shield required.
- Choice of economical single primary 115V - 60 Hz only (161 series) or the universal dual primary 115/230V - 50/60 Hz (160 series).
- High insulation - Hipot of 2,000V RMS.
- Class B insulation - 130 degrees C.
- CSA certified (File # LR3902) and UL recognized (File #E207860).
