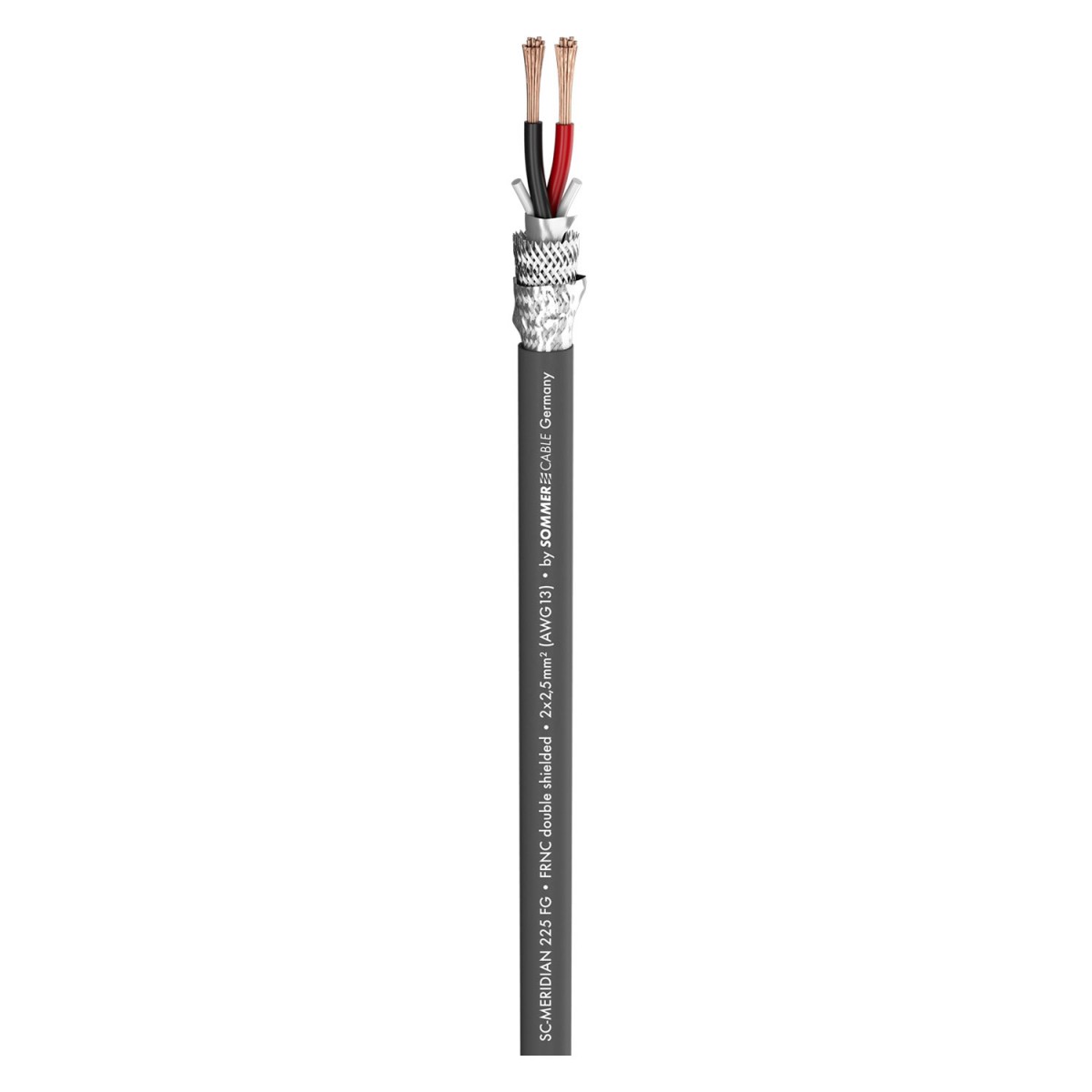

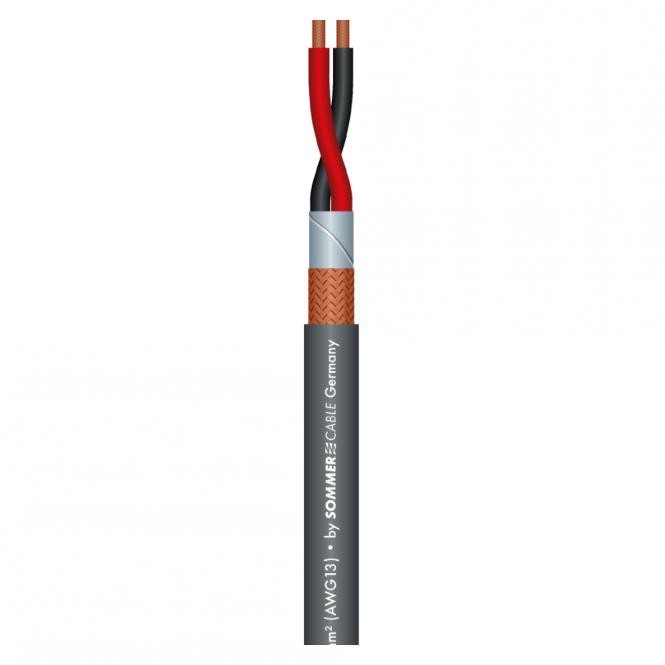

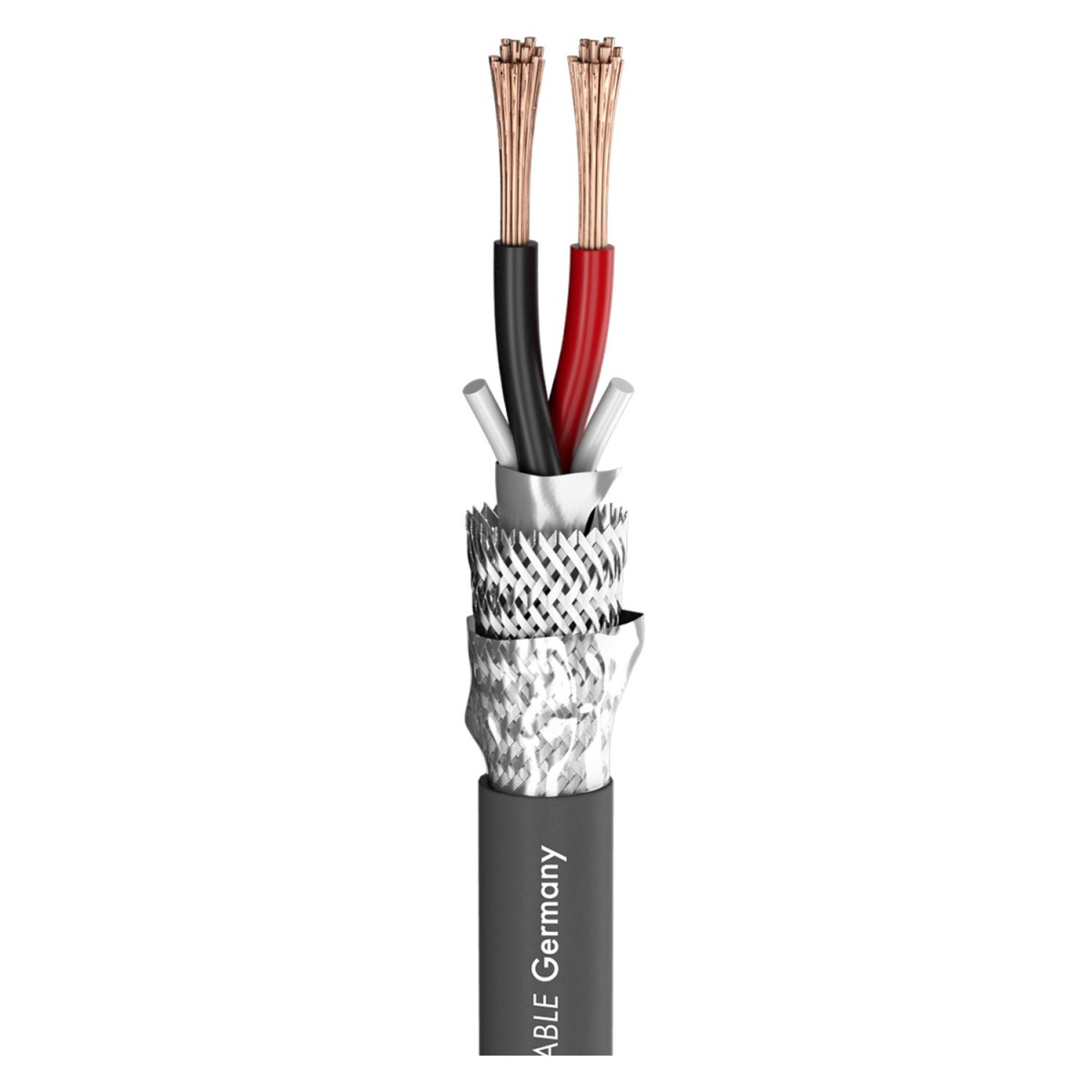

Speaker Cable Meridian Install SP225; 2 x 2,50 mm²; FRNC, shielded Ø 8,30 mm dark grey

• Small in diameter
• Very durable due to the use of special coating mixtures
• Affordable price

• PA sound systems of all kinds
• For fixed installation
• For ELA technology
• Cabling of HiFi systems

Technical Data:

• Properties: OFC oxygen free copper
• Properties: FRNC flame retardant
• Properties: Halogen-free / LSZH
• Properties: Analog
• Application area: Studio / Broadcast
• Application area: Installation
• Application area: ELA 100 V
• Application: Installation cable
• Application: Speaker Cable
• Colour: grey
• Colour detailed: dark grey
• Jacket material: FRNC, shielded
• Jacket Ø: 8,3 mm
• Number of Channels (audio): 1
• Inner conductor (audio): 2
• Inner conductor (audio): 2,5 mm²
• Inner conductor Ø (audio): 1,78 mm
• AWG (audio): 13
• Copper strands (audio): 50
• Copper strand Ø (audio): 0,25 mm
• Conductor insulation Ø: 3,05 mm
• Weight per 1 m: 106 g
• Fire load per m: 0,38 kWh
• Style variant: round
• Packing: 500 m spool
• Packing: 100 m spool
• Temperature min.: -30 °C
• Temperature max.: 70 °C
• Width: 8,3 mm
• Height: 8,3 mm
• Capac. cond./cond. per 1 m (audio): 136 pF
• Insulation resist. per 1 km: 0,005 G?
• Insulation resist. per 1 km (audio): 0,005 G?
• Conductor resistance per 1 km: 7,5 ?
