The "Mini Block Push-Pull EL84 (6BQ5) Valve Amplifier"A Mini block ultra linear class A push-pull valve amplifier using EL84 (6BQ5) tubes designed by Bruce Heran of Oddwatt Audio. For more information and schematics see "Mini Block Push-Pull EL84 (6BQ5) Valve Amplifiers" the page on the diyAudioProjects.com.

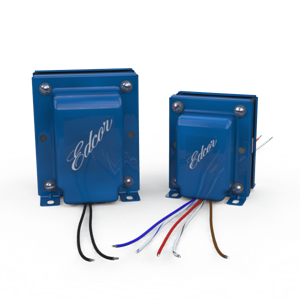

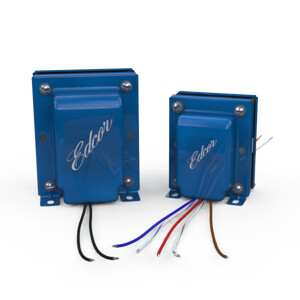

Power TransformerThe XPWR236 (EM0719) power transformer was specially designed and built for Oddwatt Audio. It has been released to be openly sold. It is a 120V, 60Hz. or 240V, 50/60Hz. line to 360V (180-0-180) at 250mA center tapped and 12V (6-0-6) at 2A center tapped.
Audio Output TransformersThe CXPP10-MS-10K (EM0750) audio transformer was specially designed and built for Oddwatt Audio. It has been released to be openly sold. This audio output transformer is a 10W, push-pull tube output transformer for 10K Ohms input impedance to 4 and 8 Ohms.
Magnet WireAll units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.
The CoreEDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.
The BobbinsEDCOR's royal blue bobbin with black finishing tape.
TerminationThe terminations are UL1015, 18 ga. lead wire for the XPWR236 and UL1015, 20 ga. lead wire for the CXPP10-MS-10K.
MountingThese units comes with steel end bells for mounting with the use of four screws. The end bells are powder coated Gentian Blue (RAL 5010) to add to your tube display and overall appearance.
XPWR236 Documents XPWR236-120 Manual XPWR236-240 Manual Drawing 15000-EI125-125-0X.pdf Drawing 15000-EI125-125-0X.dwg Drawing 15000-EI125-125-0X.dxf
CXPP10-MS-10K Documents CXPP10-MS-10K Series Manual Drawing 15000-EI100-100-0X.pdf Drawing 15000-EI100-100-0X.dwg Drawing 15000-EI100-100-0X.dxf
