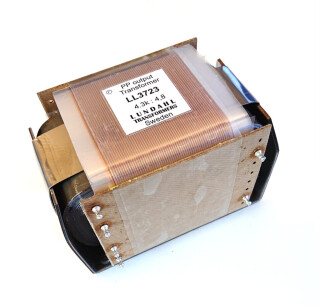

LL3723 Push-Pull Tube Amplifier Output Transformer

Artikelnummer: LL3723
Kategorie: Röhren-Ausgangsübertrager
Hersteller: Lundahl

With a new internal winding structure, we have managed to reach very good HF response in our new push-pull output transformer LL3723 (4.3k : 4,8 ohms).

334,97 €

inkl. 19% USt. , zzgl.

Artikel vergriffen
Lieferzeit: 29 Tage (DE - Ausland abweichend)

Beschreibung
Bewertungen

The LL3723 3,4K is an output transformer with UL taps for push-pull amplifiers. The transformer is built up from two coils, each consisting of 3 sections, one primary and two secondary sections. The secondary sections are tapped for 4 and 8 ohms load. The windings are arranged to minimize destructive capacitive coupling between primaries and secondaries, and for extremely small phase error between anode and UL tap. The C core is a high-quality grain-oriented silicon steel C-core from our own production.

Versandgewicht:	2,50 kg
Artikelgewicht:	2,50 kg
