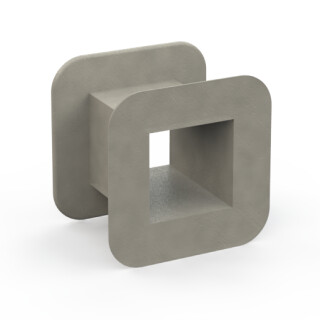

Edcor B050-063-00 coil bobbin, designed for EI50, 0.50" x 0.625" window

Artikelnummer: B050-063-00
HAN: 30255
Kategorie: Ausgangsübertrager
Hersteller: Edcor Transformers

These Bobbins are Nylon 6/6 glass filled bobbins designed for EI50 laminated core, with a window 0.50" x 0.625".

4,54 €

inkl. 19% USt. ,

1 Auf Lager
Lieferzeit: 1 Tage (DE - Ausland abweichend)

Beschreibung
Bewertungen

Nylon 6/6 Glass Filled

Nylon 6/6 is very easy to modify with fillers, fibers, internal lubricants, and impact modifiers. Glass Filled nylon Variants of this nylon exhibit increased structural and impact strength, and rigidity. The addition of glass fibers to nylon 6/6 increases tensile strength, stiffness, compressive strength, and a lower thermal expansion coefficient over conventional unfilled grades. Glass filled nylons offer better strength than general purpose nylon.

Core Size	EI50 (0.5" x 0.625")
Bobbin Material	Nylon 6/6 GF-30
Tensile strength	27000psi
Tensile Elongation @Break	3%
Flexural Strength	38000psi
Compressive strength	42000psi
Heat distortion, 264psi	480°F
Heat distortion, 66psi	500°F
Volume Resistivity, 50% RH	10000000000M Ohms-cm
Dielectric constant, 100Hz./1KHz.	4.5/25
Dielectric Strength, 1/8" thick	530V/mil
Oxygen Index	24
Arc Resistance	135 sec.
Water Absorption, 24 hrs	0.7%
Flamability Rating	H-B
Specific Gravity	1.38
Hot Wire Ignition	9 sec,
Compliance	RoHS & REACH

Produkteigenschaft	Wert
Versandgewicht:	0,10 kg
