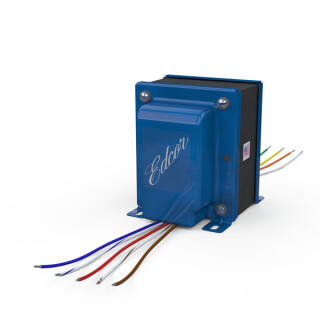

DesignMathematically designed to produce exact plate and screen voltages. Primary (Input)The input is designed for a 6.6K Ohms impedance source. Secondary (Output)The output is designed for a 4, 8 and 16 Ohms speaker impedance.Magnet Wire All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.The CoreEDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack. The Bobbins EDCOR’s royal blue bobbin with black finishing tape. TerminationThe terminations are UL1015, 20 and 18 ga. lead wire.MountingThis unit comes with steel end bells for mounting with the use of four screws. The end bells are powder coated Gentian Blue (RAL 5010) to add to your tube display and overall appearance.Specifications Wattage 60W Primary (input) Impedance 6.6K Ohms Screen/Grid Tap 40% Secondary (output) Impedance 4, 8 & 16 Ohms Frequency Response 20~20K Hz., <1dBu THD+Noise <0.1% @ 1K Hz. Bobbin Material Glass Filled Nylon 6/6 Flamability Rating Class B 130°C Core Material M6 29 ga. line grain oriented steel Termination UL1015, 20 & 18 ga. lead wire Mounting Powder coated steel end bells Weight 6.75 lbs. Dimensional Drawing 15000-EI125-200-0X Compliance RoHS, REACH
