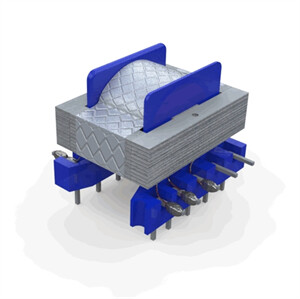

Design Mathematically designed to produce the turns ratio for microphone level signal needed. Primary (Input) Designed for a balanced or unbalanced microphone level signal. Secondary (Output) Designed for a balanced or unbalanced microphone level signal. Magnet Wire All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life. The Core EDCOR uses the finest Super "Q" 80% Nickel cores. Each unit is hand stacked to assure at least 92% stack. The Bobbin EDCOR's royal blue bobbin with black finishing tape. Sheilding This unit has an outer copper shielding around winding and core to help eliminate outside interference. Termination/Mounting This unit is designed for printed circuit board mounting. For footprint and suggested hole and pad size please see the dimensional drawing.
