Edcor WSM600/600

Description

Products specifications for Edcor WSM600/600 transformer.

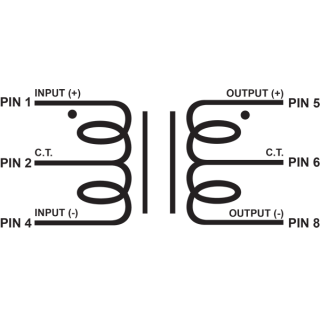

Schematic
Wattage	0.5W
Input Maximum Voltage	10Vrms
Turns Ratio	1:1
Primary (input) Impedance	600 Ohms
Primary (input) DCR	64 Ohms
Primary (input) Inductance	3H
Secondary (output) Impedance	600 Ohms
Secondary (output) DCR	68 Ohms
Frequency Response	20~20K Hz., <1dBu
THD+Noise	<0.05% @ 1K Hz.
Plot	Frequency Response/THD+N
Insertion Loss	0.5 dB
Bobbin Material	Glass Filled Nylon 6/6
Flamability Rating	Class B 130°C
Core Material	M6 29 ga. line grain oriented steel
Termination	0.187" (3/16") quick disconnects
Mounting	Zinc plated steel channel/frame
Weight	0.4 lbs.
Dimensions	2.375" (L) x 1.675" (W) x 1.383" (H)
Dimensional Drawing	15000-EI050-625-18
Manual	WSM Series Manual
Compliance

Schematic
