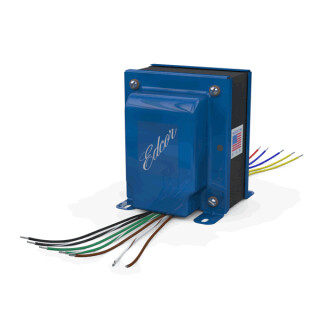

Edcor XPWR149 tube power Übertrager 800vct, 6,3vct, 6,3v and 5v

Edcor XPWR149 tube power Übertrager 800vct, 6,3vct, 6,3v and 5v

Artikelnummer: XPWR149
Kategorie: Ausgangsübertrager

Primary: 120V or 240V, 50/60Hz
Secondaries:
800V (400-0-400) at 250mA center tapped
6.3V (3.15-0-3.15) at 1.2A center tapped
6.3V at 5A
5V at 3A

273,15 €

inkl. 19% USt. , zzgl.

5 Auf Lager
Lieferzeit: 1 - 2 Tage (DE - Ausland abweichend)

Beschreibung
Bewertungen

Design Mathematically designed to produce the specified voltage(s) when loaded. Primary (Input) Designed for 120V or 240V, 50/60Hz. Secondary (Output) This transformer has multiple voltage windings, 800V (400-0-400) at 250mA center tapped, 6.3V (3.15-0-3.15) at 1.2A center tapped, 6.3V at 5A and 5V at 3A. Magnet Wire

All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life. The Core

EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack. The Bobbin

EDCOR's standard bobbin with black finishing tape. Termination

The terminations are UL1015 18 ga. lead wire. Mounting

This unit comes with steel end bells for mounting with the use of four screws. The end bells are powder coated Gentian Blue (RAL 5010) to add to your tube display and overall appearance.

Sekundär:	300V - 320V
Anwendung:	Netztransformator
Versandgewicht:	4,50 kg
Artikelgewicht:	4,50 kg
