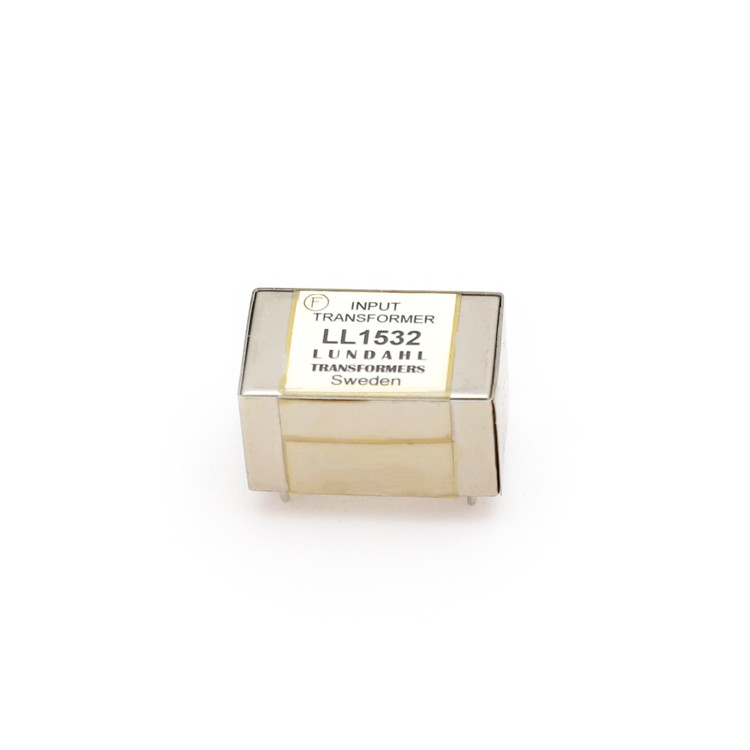

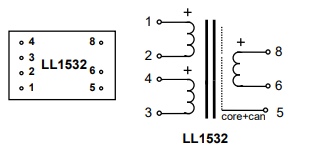

LL1532 consists of two coils each with one primary and one secondary winding separated by an electrostatic (Faraday) shield. The two secondary windings are internally connected in series. The core is a high permeability mu-metal core. The LL1532 is magnetically shielded by a mu-metal housing.
Turns ratio: 1 + 1 : 2
Dims (Length x Width x Height above PCB (mm)): 28 x 17 x 15 / 28 x 17 x 14
Spacing between pins: 3.81 mm (0.15")
Spacing between rows of pins: 20.32 mm (0.8")
Weight: 25 g / 19 g
Rec. PCB hole diameter: 1.5 mm
