The LL1580 is designed for splitting signals in application where large and noisy ground differences appear, but where external magnetic fields are under control. By careful design, including double electrostatic shields, the capacative coupling between the different parts of the transformer is kept to a minimum.

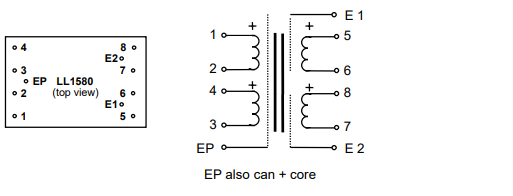

Turns ratio: 1 + 1 : 1 + 1
Spacing between pins 5.08 mm (0.2")
Spacing between rows of pins 27.94 mm (1.1")
Offset of earth pin from adjacent row: 2.54 mm (0.1")
Recommended PCB hole diameter: 1.5 mm
Dimensions (Max. L x W x H above PCB(mm)) 38 x 24 x 20.5
Weight: 61 g
Static resistance of each primary: 40 ?
Static resistance of each secondary: 49 ?
