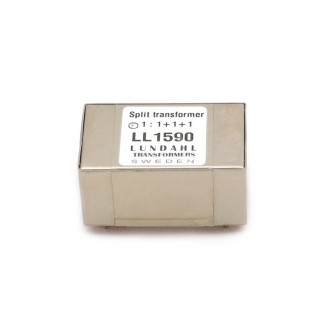

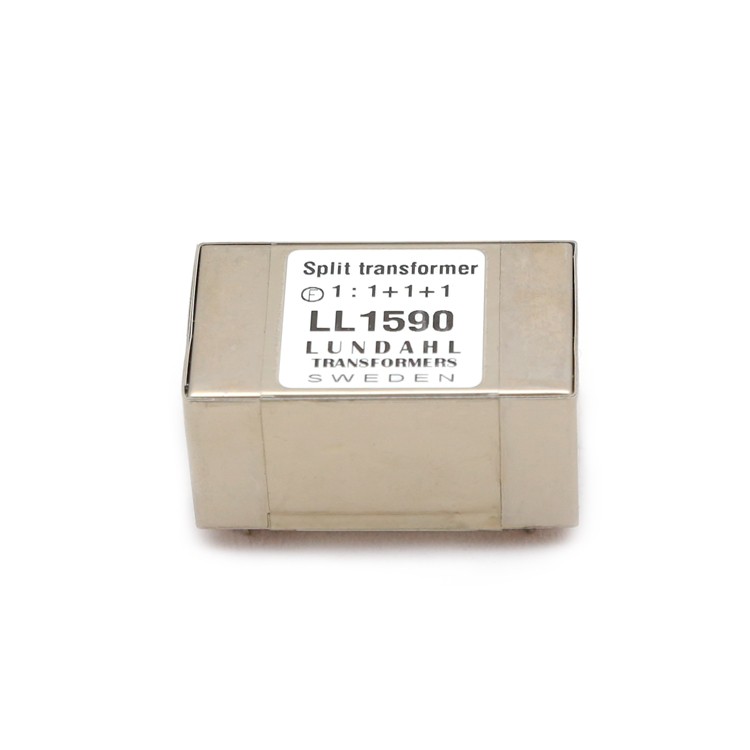

In many splitting applications, the splitting transformer must have a high immunity to input common mode signals, to stray magnetic fields from e.g. power transformers and to large ground potential differences in receiving systems. The LL1590 is developed to handle those types of problems. When designing the LL1590, we have used our well established two coil structure to create a transformer with a high degree of symmetry.
Turns Ratio: 1 : 1 + 1 + 1
Dimensions (Max. L x W x H above PCB(mm)): 47 X 28 X 23
Recommended PCB hole diameter: 1.5 mm
Weight: 115 g
