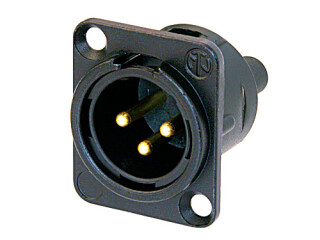

NEUTRIK NC3MDS1-B XLR-Einbaustecker 3polig

Artikelnummer: NC3MDS1-B-DON
GTIN: 4049371067010
Kategorie: Stecker & Buchsen
Hersteller: Neutrik

10,26 €

pro 1 Stk. inkl. 19% USt. , zzgl.

Auf Bestellung
Lieferzeit: 1 Tage (DE - Ausland abweichend)

Stk.

Bitte beachten Sie die Mindestabnahme von 2 Stk..

Beschreibung
Bewertungen

3 pole male receptacle, D-size metal body, screw terminals accommodating wire range 0.14mm² to 0.5mm² (AWG 26 -20), black metal housing, gold contacts, UL recognized component

Features & Benefits

Robust "D" metal shell
Standardized D sized 24 mm panel cutout
Screw terminals

Product

Title

NC3MD-S-1-B

Connection Type

XLR

Gender

male

Electrical

Capacitance between contacts

= 4 pF

Contact resistance

= 5 mO (inner)

Dielectric strength

1,5 kVdc

Insulation resistance

> 10 GO (initial)

Rated current per contact

3 A

Rated voltage

50 V

Mechanical

Insertion force

= 20 N

Withdrawal force

= 20 N

Lifetime

> 1000 mating cycles

Wiresize

0.14 mm² bis 0.5 mm²

Wiresize

26 AWG - 20 AWG

Wiring

screw terminals

Locking device

Latch lock

Mounting direction

front

Chassis shape

Material

Contact plating

0.2 µm Au hard alloy over 2 µm Ni

Contacts

Brass (CuZn35Pb2)

Insert

Polyamide (PA 6.6 30 % GR)

Locking element

Steel Ck67

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Black chromium

Environmental

Flammability

UL 94 HB

Standard compliance

IEC 61076-2-103

Protection class

IP 40

Temperature range

-30 °C to +80 °C

Kontakte:	Goldbeschichtet
Pins:	3-Pol
Versandgewicht:	0,10 kg
