Elma A4 Series Attenuator Audio Switch 24 positions

starting from 44,06 €
(37,03 € excl. vat)
including VAT., plus shipping
  • In stock!
  • Stock: More than 10 available
Order Now
Please select
  • Switching Type
  • THT, SMT pre-assembled
  • Channels / Wafer

Category
Manufacturer
Item no.
  • EL-A4-SER
Product weight
  • 0,03 kg
Shipping weight
  • 0,04 kg
Compliance

Interesting items

  1. Custom Inductor RM8 Core
    Custom Inductor RM8 Core
    starting from 35,47 €
    (29,81 € excl. vat)
    including VAT., plus shipping
  2. Bakelite Knob Fester RCA black 33mm Large
    Bakelite Knob Fester RCA black 33mm Large

    Average Rating: 5/55
    starting from 7,13 €
    (5,99 € excl. vat)
    including VAT., plus shipping

Description

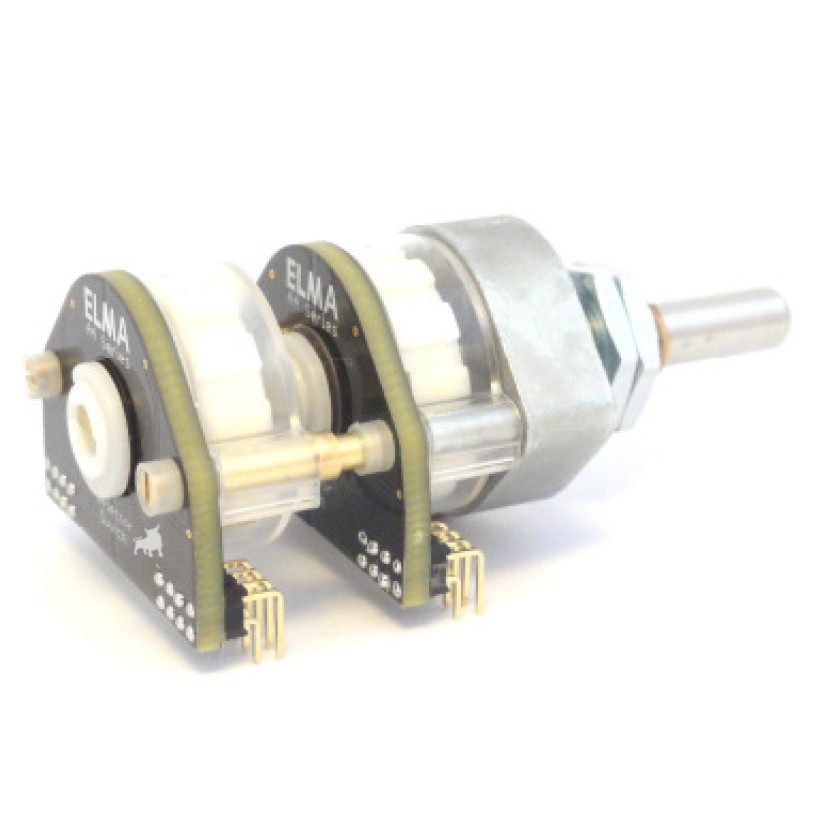

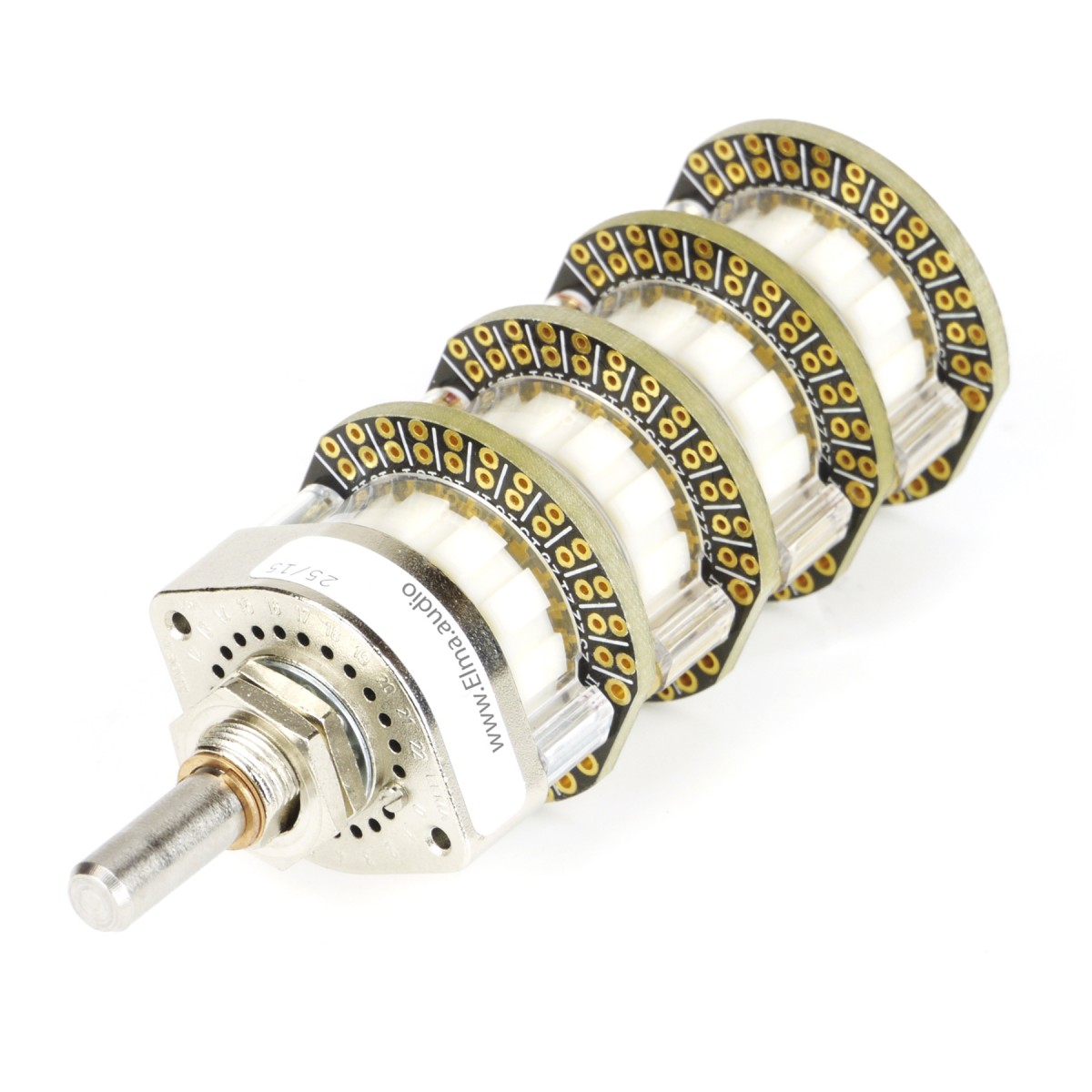

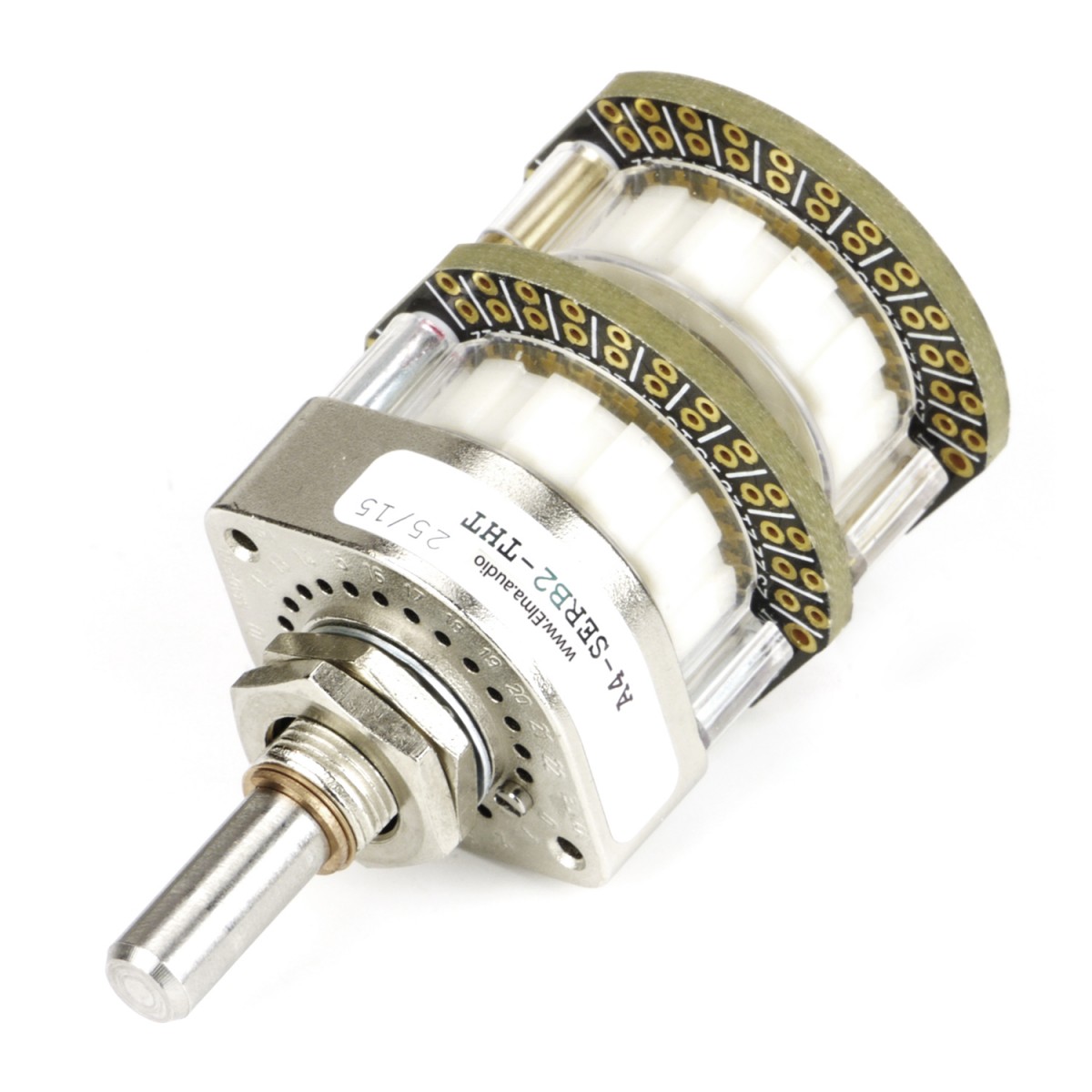

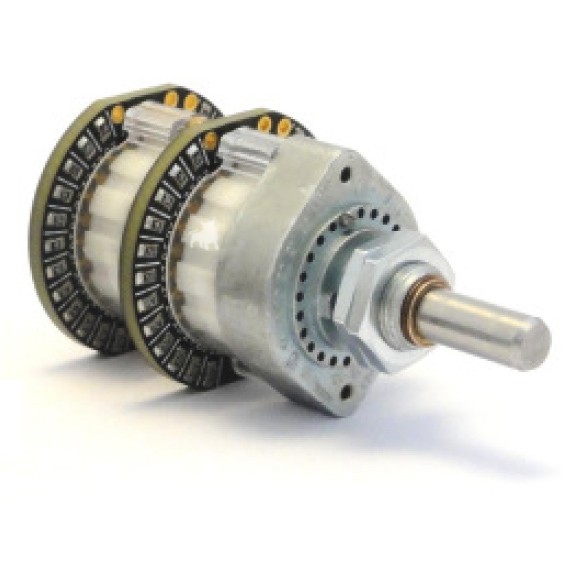

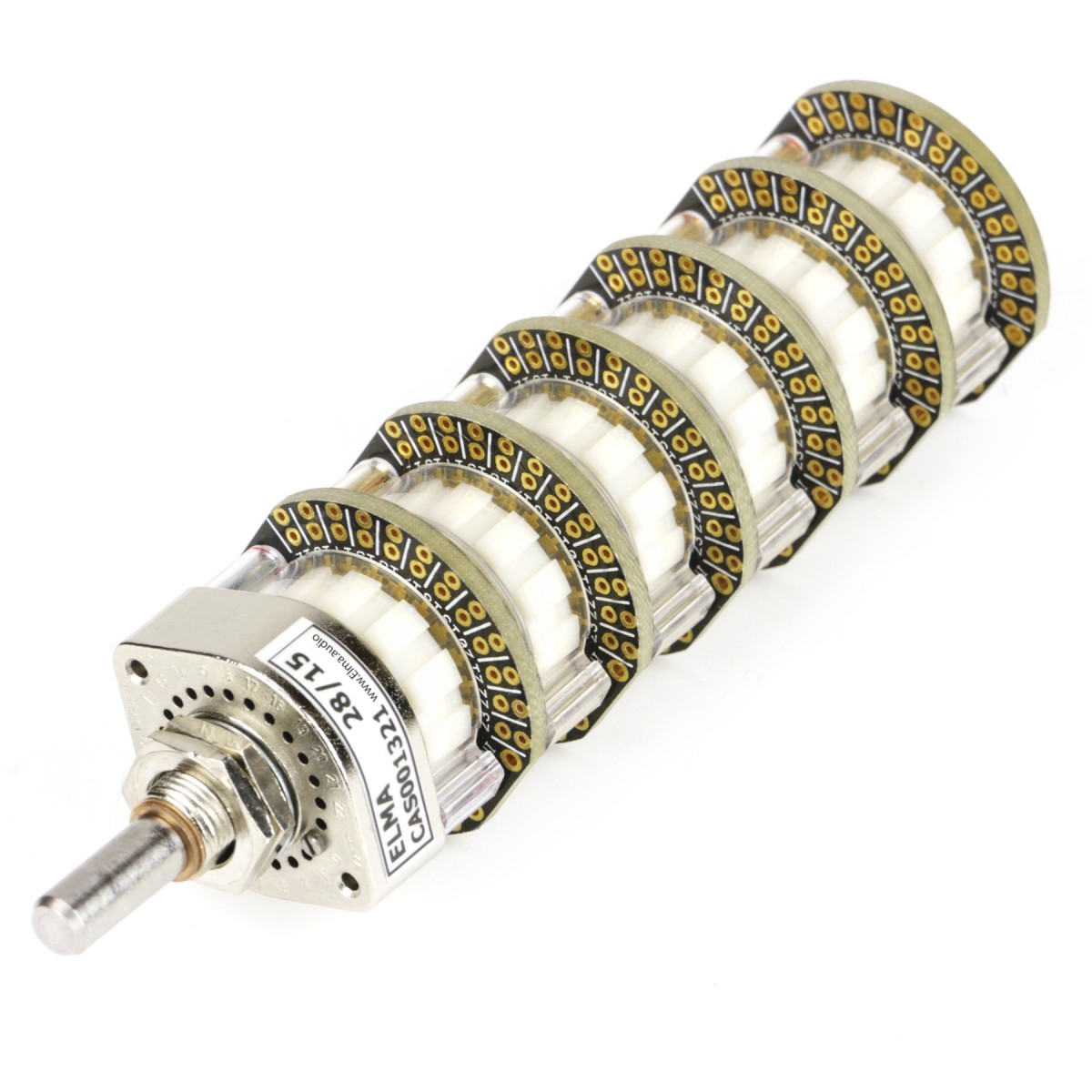

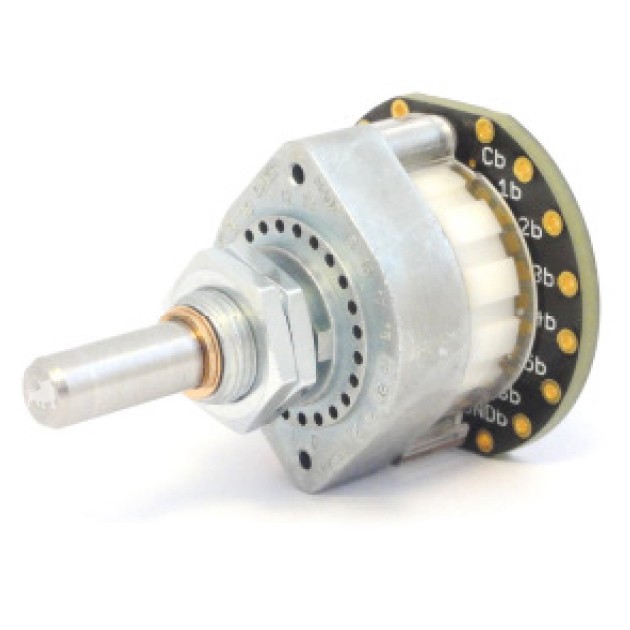

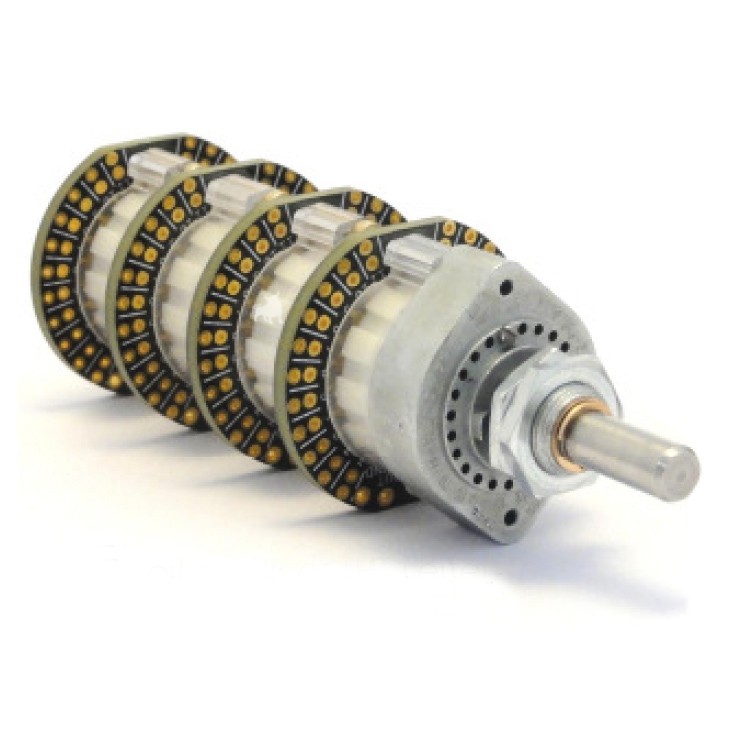

Professional Audio Attenuator switch with 24 positions, recommended to replace a potentiometer with a quality stepped attenuator.

The A4 is a individual customizable audio rotary switch which offers a huge range of rotary switches in series or ladder type attenuator configuration.

The High-End Elma rotary switch is developed with a PCB based switch contact system that is specifically designed to meet audiophile requirements for super sonic performance. All switches feature Elma´s hallmark indexing feel for outstanding tactile feedback and feel with a possible torque from 1.5 to 15Ncm. Selectable end stop. You can choose between horizontal PCB or vertical switch design and a THT version without pre-soldered resistors or the SMT version with pre-soldered high-precision low-noise thin-film resistors with input impedance options 10k, 25k, 50k oder 100k Ohm. The series A4 attenuators are available up to 8 channels and the ladder type attenuators up to 4 channels. The A4 switch can be assembled with resistors up to 3.6mm diameter for the ladder type switch. This rotary switch is also available as concentric version. We offer customized THT version with custom selected resistors - If you need any custom solution, please contact us.

Features

  • Selector switches, series and ladder type attenuators
  • Exceptional sonic clarity, smooth and precise switch feel
  • Low-bounce contacts with 3 micron gold plating
  • Motorized versions available (see Remote Audio PLUS)
  • Customized tapers
  • Concentric Version available
  • For high-end home audio, mixing console and Cinema

Torque standard
up to 2 Wafers 1,5Ncm
from 3-4 Wafers 2,5Ncm
from 4 Wafers 5Ncm
Please contact us, if you need individual torque values.


On the following pictures you can see a concentric design arrangement of the A4 switch. Please contact us if you are interested in a concentric version.
Elma A4 Concentric rotary switch

Elma A4 Concentric rotary switch 4 wafers front
Announced maximum resistor diameter for the A4 is: 0.7/3.6/10 mm

Customer-Pics

Log in to upload a pic!


At moment there are no customer pics for this product.

Multibuy

Product Tags

Other people marked this product with these tags:

Ratings from users

  • 5 Stars: 100% (1)
  • 4 Stars: 0% (0)
  • 3 Stars: 0% (0)
  • 2 Stars: 0% (0)
  • 1 Star: 0% (0)
Average product review: Average Rating: 5/55

(This product has got 1 Reviews)

Share your experience with other customers
More product reviews (Evaluated with 5 Stars)
  1. Average Rating: 5/55 Piero S. Wrote at 03.01.2018
    the synthesis of perfection
    simply an amazing mechanic and electric construction
