GSSL Turbo Sidechain Wiring

don-audio.com
2015-04-27 23:15:00 / Blog / Comments 3

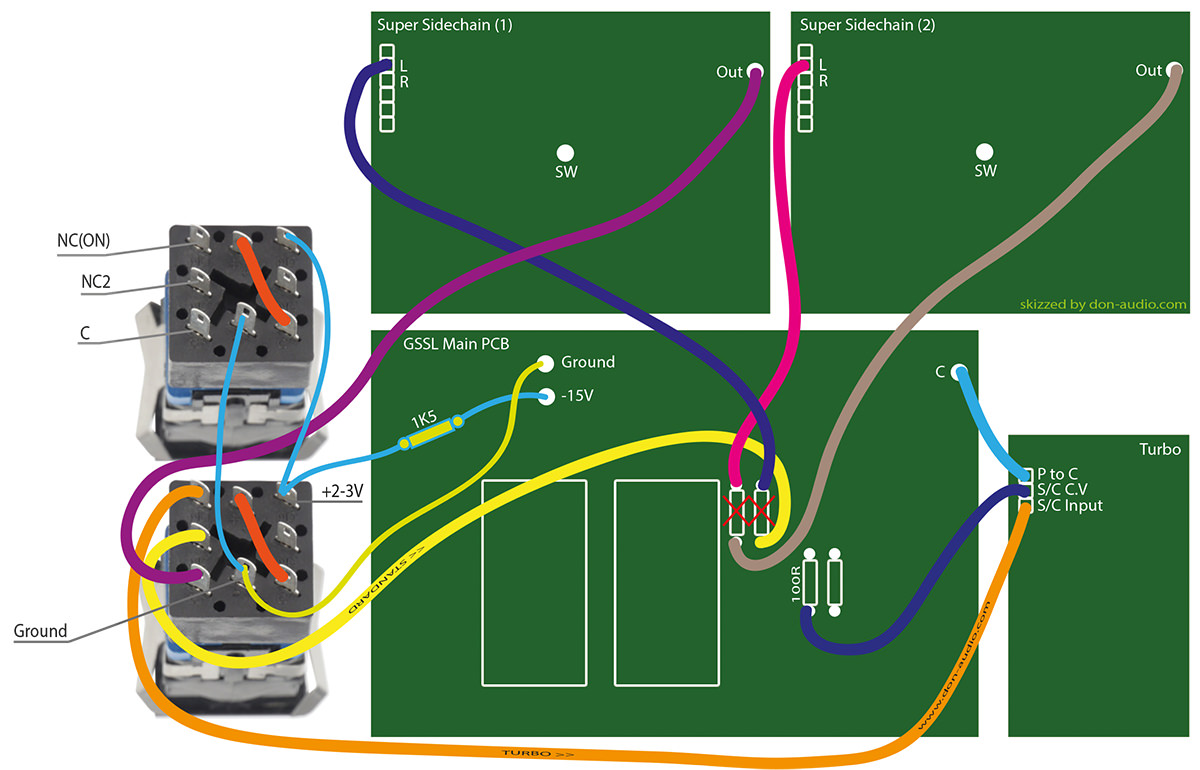

Because of some requests i made this wiring chart how to wire two sidechain boards with turbo mode for you GSSL DIY mates. Each sidechain board works for one channel left and right: GSSL Turbo Sidechain Wiring comments are welcome. Don
Comments 3
Total entries: 3

Saint Hilaire Marc, 01.11.17 22:41

Hello, im really noobs, the 2 switch are on the left are dpdt?
Answer: Hello, yes they are please see the switches guide for specifications. Best Regards Don

Georg, 27.05.15 23:22

This saved me a lot of time! thanks a lot!! Georg

Georg, 27.05.15 23:22

This saved me a lot of time! thanks a lot!! Georg
