Flameretarded FRNC Jacket (IEC 60332-3-24) and EN50266-2-4
Halogen Free IEC 60754-2 and DIN EN 50267-2-21
Balanced shielded audio cable! Foil shielded halogen free installation cable using 7 x 0.20 mm tinned wires for IDT. Designed for wiring balanced audio signals in a metal environment. Aluminium foil is melt with the jacket and will come of automatically. The twisting of the each 7 strands is so tight that once peeling the insulation of, the strands do not come apart and the cable can be installed without additional handling. The non corrosive material chosen, allows this cable to be used for fixed installations in public buildings and in governmental installations where halogen free products are demanded. The jacket is made of flame retarded polyolefine material.
Each Channel is made similar to 10206 GAC-2/foil FRNC
We offer also a similar PVC very flexible installation stereo cable with foil shield 12001
Balanced Analaog Stereo GAC-2pair foil FRNC (flat) 150 m Black

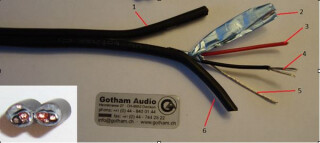

Aufbau:
|
1+6 = Mantel: |
Polyolefine, Ø 3.0 x 6.0 mm, black |
2 = Schirm Nr. 1 |
100% Aluminum-Polyester foil |
3 = Draht |
7x0.20mm Stranded tinned copper wires |
4 = isolation |
PE, Ø 1.1mm twisted, black and red conductors |
5 = Leiter |
PE, Ø 1.1mm twisted, black and red conductors |
Technische Daten:
|
Leiterwiderstand: |
|
max 85 Ohm/km |
Schirmwiderstand: |
|
max 65 Ohm/km |
Kapazität: |
Ader/Ader |
<75 nF/km |
|
Ader/Schirm |
<140 nF/km |
Insulation reslstance: |
|
> 200 MOhm /km |
Chararteristic impedance |
|
75 Ohm@200MHz |
Prüfspannung: |
|
1500 V eff. C/S |
Temperaturbereich: |
flexi-installiert: |
-5° to +50° C |
|
fix-installiert: |
-30° to +70° C |
