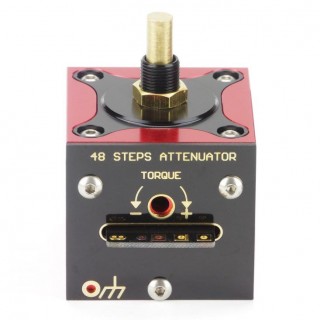

All 48 steps are assembled SHUNT-wise with the high performance Vishay Z-Foil resistors to achieve highest audiophile performance, an almost zero noise-floor and highest linearity.SHUNT type: Only two resistors in signal pathChannels: Stereo / 2 ChannelsSwitching type: MBB (Make Befor Break) Number of steps: 48Attenuation range: -60 dB ... 0 dBAttenuation per step: steps 1 to 11 - 2dB, 12 to 48 - 1dBContact material: Hard goldPolished wiper and contact pinsExtremely short signal pathChannel matching: +/-0.1 dBResistance: 10, 20, 50, 100, 250 kohm or custom values Resistors: Vishay Z-Foil ULTRA-low noise, non-inductive resistorsMechanical life: > 50 000 cyclesCNC machined PA11 aluminium bodyPrecision ball bearing supportShaft diameter: 6 mmIndexing angle: 7,2 deg
