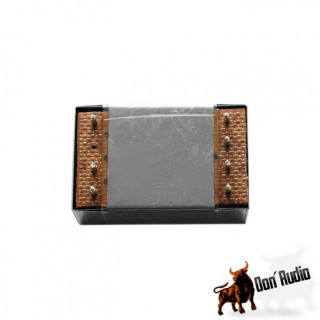

Lundahl LL1538 Mikrofon Input Übertrager, gematches Paar, 2 Stück

Lundahl LL1538 Mikrofon Input Übertrager, gematches Paar, 2 Stück

Artikelnummer: LL1538-MP
Kategorie: Ausgangsübertrager
Hersteller: Lundahl

Der LL1538 ist ein Hoch- Performance Mikrofon-Input Übertrager, mit mu-metal Kern und zwei drei-bereichs Windungen.

174,38 €

inkl. 19% USt. , zzgl.

1 Auf Lager
Lieferzeit: 1 Tage (DE - Ausland abweichend)

In the LL1538XL the core is about 45% larger than in the LL1538, resulting in a larger level capability. In both types, primary and secondary windings are separated by electrostatic shields. The three-section winding structure of the transformers results in a very low leakage inductance and thus an excellent frequency response. The transformers are encapsulated in mu-metal cases for magnetic shielding.

Dimensions (Max. Length x Width x Height above PCB (mm)): 38 x 24 x 17
Spacing between pins: 5.08 mm (0.2")
Spacing between rows of pins: 27.94 mm (1.1")
Weight: 46 g
Rec. PCB hole diameter: 1.5 mm
Static resistance of each primary: 44 Ohms
Static resistance of each secondary: 880 Ohms
Distortion (primaries connected in parallel, source impedance 200W ): 0.2 % @ 0 dBU
Self resonance point: > 120 kHz
Optimum termination for best square-wave response (Connection 1:5, source imp. 200W ): No termination necessary
Frequency response (source 200 W, no termination): 10 Hz - 100 kHz +/- 0.3 dB
Isolation between windings/ between windings and shield: 4 kV / 2 kV

Anwendung:	Mikrofon
Versandgewicht:	0,10 kg
Artikelgewicht:	0,05 kg
