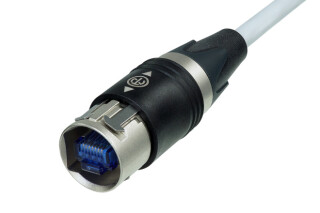

Neutrik NKE6S-30 etherCON CAT6 cable

(1 Reviews)

SKU: NKE6S-30-DON

29374,85 ¥

incl. 19% VAT. , plus

8 In stock
Delivery time: 1 Workdays (DE - int. shipments may differ)

Please note the permissible order quantity of 1 Units.

Description
Reviews

The preassembled etherCON CAT6 patch cables use a shielded S/FTP cable with cable plug carrier offering a robust metal shell and Push-Pull locking system.

Attention! Intermates ONLY with NE8FDY-C6* Cat 6 receptacles.
Not compatible with CAT5 and CAT6_A chassis connectors.

Features & Benefits

CAT6 compliant - data rate up to 10 GBit/s
CAT6 performance - fast data transmission and high bandwidth applications
CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173
IP65 - Dust and waterproof in mated condition
Shielded system - high noise immunity and EMI protection
Push Pull mating - secure and proven locking system
Ready made patch cables with rugged cable carrier and unique chuck-type strain relief

Ordering Information

	NKE6S-*	Both cable ends with cable plug carrier, e.g. NKE6S-3
	NKE6S-*-WOC	Only one cable end with cable plug carrier, e.g. NKE6S-3-WOC

* available lengths: 1 m, 2 m, 3 m, 5 m, 10 m, 30 m

Product

Title

NKE6S-*

Gender

male

Electrical

Contact resistance

< 10 m?

Dielectric strength

1 kVdc

Frequencyrange

1 - 250 MHz

Insulation resistance

? 0.5 G?

Rated current per contact

1,5 A

Rated voltage

< 50 V

Mechanical

Insertion force

? 40 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Wiresize

8 x AWG 27/7 mm²

Locking device

Push-Pull

Material

Boot

Polyurethan

Contact plating

0.7 µm Au over 1.2 µm Ni plating

Contacts

Bronze (CuSn8)

Insert

Polyamide (PA 6.6 30 % GR)

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Nickel

Strain relief

Polyacetal (POM)

Environmental

Flammability

UL 94 HB

Standard compliance

CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173

Protection class

IP 65

Temperature range

-10 °C to +60 °C

Item information	Value
Series:	CAT6 patch cable etherCON CAT6 Cables
