Classi PEQ OPA Gainstage Kit

SKU: CLOPAGP-K
Category: PCBs
Manufacturers: Classi

86,38 €

incl. 19% VAT. , plus

2 In stock
Delivery time: 1 Workdays (DE - int. shipments may differ)

Description
Reviews

This Classi PEQ OPA Gainstage is an quality audio gainstage for the Classi PEQ project. It is based on NE5532 OP-Amps which are favored for professional studio applications and have a great headroom and low noise floor and outstanding natural sound. It replaces a tube SRPP Stage to build up a tubeless audio circuit. The Kit includes all parts to complete the OPA Gainstage:

Features:

- Ultra natural sound based on OPAs
- Adjustable Input/Output-Gain by Resistor or pot Modification
- Optional enhanceable with output/input transformers - For example: Lundahl LL5402 or Edcor XS1100
- Matched Bypass Volume
- Multiple Bypass Functions
- Ground Lift
- Voltage Filtering and Smoothing Circuit
- Easy to assemble

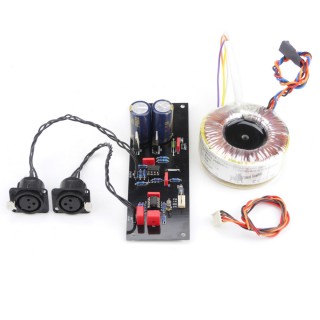

Included:

1 x "2 x 15V" Audio Toroidal Transformer with integrated Don-Audio Trafo Shield
1 x Classi PEQ OPA Gainstage PCB
2 x OPAs - Ultra low noise floor
1 x LED Lamp
2 x Neutrik goldplated Jacks
2 x OP-Amp NE5532
2 x Voltage Filtering&Smoothing Power Elkos
2 x Voltage Smoothing Rectifier
1 x Metal Film Resistors Bundle
1 x Wima Caps, Rectifiers, Elkos, Sockets & Accessories Bundle

Item information	Value
Shipping weight:	1,14 kg
Item weight:	0,58 kg
