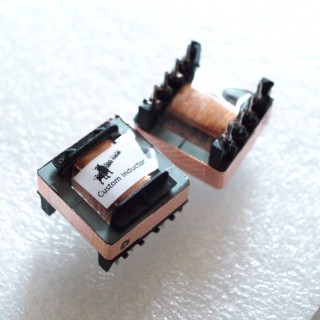

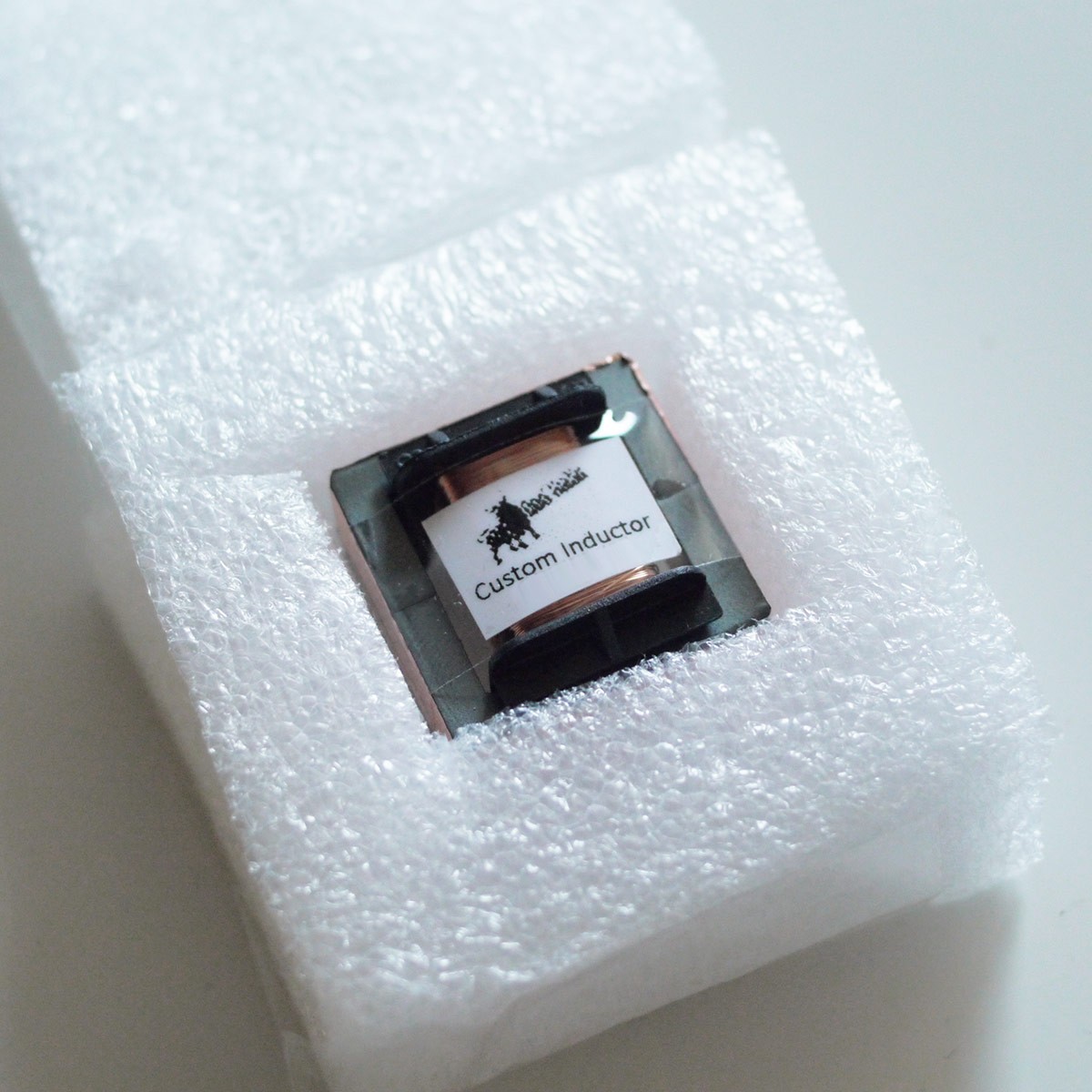

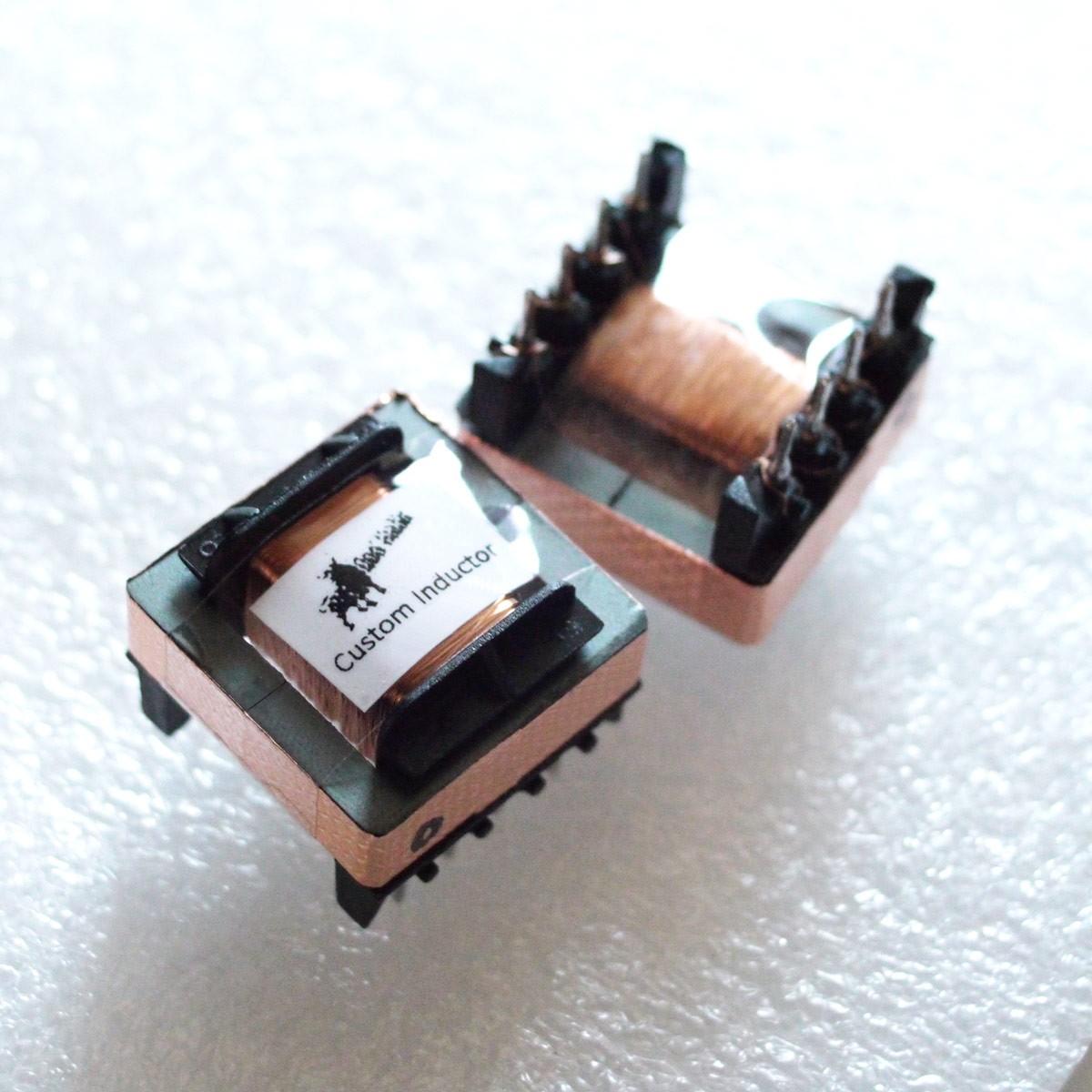

Custom Inductor EF Core

starting from 49,25 $
(41,39 $ excl. vat)
Scale price:
  • from 5: 44,09 $*
  • from 10: 39,43 $*
  • from 20: 34,31 $*
  • from 40: 32,94 $*
  • from 100: 31,57 $*
* Price per unit
Scale price:
  • from 5: 44,09 $*
  • from 10: 39,43 $*
  • from 20: 34,31 $*
  • from 40: 32,94 $*
  • from 100: 31,57 $*
* Price per unit
including 19% VAT., plus shipping
  • In stock!
  • Shipping time: 4 - 5 workdays
Order Now
Please select
  • Shielding options

* Mandatory fields

Category
Manufacturer
Item no.
  • 20120613AT
Product weight
  • 0,08 kg
Shipping weight
  • 0,09 kg
Compliance

Interesting items

  1. MEQ-5 - Inductor set RM8
    MEQ-5 - Inductor set RM8
    Special price: 68,05 $
    (57,19 $ excl. vat)
    Old price: 91,12 $
    including 19% VAT., plus shipping
  2. Lundahl LL1540 high level line input transformer
    Lundahl LL1540 high level line input transformer

    Average Rating: 5/55
    80,16 $
    (67,36 $ excl. vat)
    including 19% VAT., plus shipping

Description

Max-Pins: 8 (incl. Pin0)
Max-Values: 7 custom windings/values are possible. Pin0 is always 0mH.
Max-mH: 1200mH

Please type in your mH values into the text field separated by comma.
For example: (0mH,) 30mH, 50mH, 80mH, 100mH, 150mH, 217mH, 450mH, ...

+- 20% Tolerance
Within an order >10pcs we do a measuring in between and optimise the toleranze to +- 10%.

Measures:
Width: 25mm
Height: 20mm (without Pins)
Pins space: 5mm

Material:
Core: High-efficiency ferrite
Pins: Newsilver CuNi18Zn20
Bobbin: Fiberglas self-extinguishing PBT GV ( UL 94 V-0 )

PDF

Customer-Pics

Log in to upload a pic!


At moment there are no customer pics for this product.

Product Tags

Ratings from users

  • 5 Stars: 100% (1)
  • 4 Stars: 0% (0)
  • 3 Stars: 0% (0)
  • 2 Stars: 0% (0)
  • 1 Star: 0% (0)
Average product review: Average Rating: 5/55

(This product has got 1 Reviews)

Share your experience with other customers
More product reviews
  1. Average Rating: 5/55 H.. Wrote at 10.01.2014
    Custom Inductor


    I received the inductor today and I am very pleased with it! Much better than the Toko inductors which I used as a test. It has indeed a sound of its own. Great!
