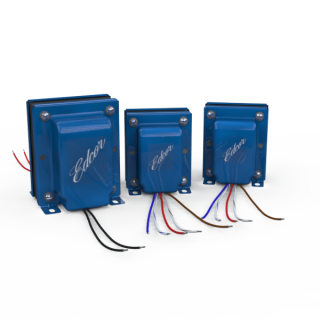

Edcor DAP-201-240 Power and audio output transformer bundle

The "PoddWatt: 5751 SRP / (6BQ5) Push-Pull (class A) Tube Amplifier"
A ultra linear class A push-pull valve amplifier using EL84 (6BQ5) tubes designed by Bruce Heran of Oddwatt Audio. For more information and schematics see "PoddWatt: 5751 SRPP / EL84 (6BQ5) Push-Pull (class-A) Tube Amp" the page on the diyAudioProjects.com.

Power Transformer
The XPWR236 (EM0719) power transformer was specially designed and built for Oddwatt Audio. It has been released to be openly sold. It is a 120V, 60Hz. or 240V, 50/60Hz. line to 360V (180-0-180) at 250mA center tapped and 12V (6-0-6) at 2A center tapped.

Audio Output Transformers
The CXPP10-MS-10K (EM0750) audio transformer was specially designed and built for Oddwatt Audio. It has been released to be openly sold. This audio output transformer is a 10W, push-pull tube output transformer for 10K Ohms input impedance to 4 and 8 Ohms.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
EDCOR's standard bobbin with black finishing tape.

Termination
The terminations are UL1015, 18 ga. lead wire for the XPWR236 and UL1015, 20 ga. lead wire for the CXPP10-MS-10K.

Mounting
This unit comes with steel end bells for mounting with the use of four screws. The end bells are powder coated Gentian Blue (RAL 5010) to add to your tube display and overall appearance.
