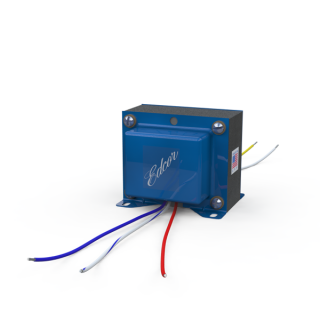

Edcor GXSE15-8-5K Single Ended Tube Output Transformer

94,01 €
(79,00 € excl. vat)
Scale price:
  • from 4: 91,19 €*
  • from 8: 89,31 €*
* Price per unit
Scale price:
  • from 4: 91,19 €*
  • from 8: 89,31 €*
* Price per unit
including VAT., plus shipping
  • Must be ordered. Ready for shipment in 56 days
  • Shipping time: 57 - 58 workdays
Order Now
Category
Item no.
  • GXSE1585K
Product weight
  • 1,25 kg
Shipping weight
  • 1,70 kg
Compliance

Interesting items

  1. Hammond Multi-Tap PRI, 750VCT SEC. 374BX
    Hammond Multi-Tap PRI, 750VCT SEC. 374BX
    119,10 €
    (100,09 € excl. vat)
    including VAT., plus shipping
  2. Hammond Choke 10H @ 200mA DC 193J
    Hammond Choke 10H @ 200mA DC 193J

    Average Rating: 5/55
    46,09 €
    (38,73 € excl. vat)
    including VAT., plus shipping

Description

Wattage 15W
Max. Current 100mA
Primary (input) Impedance 5K Ohms
Screen/Grid Tap 40%
Secondary (output) Impedance 8 Ohms
Frequency Response 40~18K Hz., <1dBu
THD+Noise <0.1% @ 1K Hz.
Bobbin Material Glass Filled Nylon 6/6
Flamability Rating Class B 130°C
Core Material M6 29 ga. line grain oriented steel
Termination UL1015, 20 ga. lead wire
Mounting Powder coated steel end bells
Weight 2.75 lbs.
Compliance RoHS & REACH

Notify me when this product is available

Notify me when this product is available

* Mandatory fields

Customer-Pics

Log in to upload a pic!



"EL84(6p14p)/ECC83 SE Amplifier with overall NFB and Ultralinear configuration.\r\nPurchased my first set of GSXE15´s by pure chance. In the meantime I tested several alternatives. The EDCORS outperformed them all in terms meassurents, sound, ease of installation and looks vs. price."

Product Tags

Ratings from users

  • 5 Stars: 50% (1)
  • 4 Stars: 0% (0)
  • 3 Stars: 0% (0)
  • 2 Stars: 0% (0)
  • 1 Star: 0% (0)
Average product review: Average Rating: 4.5/54.5

(This product has got 2 Reviews| View more ratings in other languages)

Share your experience with other customers
More product reviews
  1. Average Rating: 5/55 Gioacchino T. Wrote at 10.09.2022
    The best you can find for that price.
    Those OT are really nice sounding. The finish is very good and nice looking. I will buy for sure another pair for my 807 SE flea power amplifier. Thanks to Don Audio for the fast shipping!
