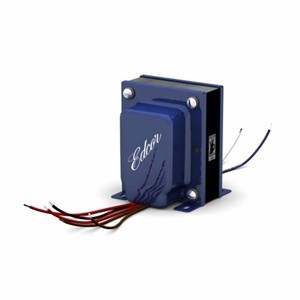

Edcor XPWR139-120/240

SKU: 20130482AT
HAN: 20130482AT
Category: Audio transformers
Manufacturers: Edcor Transformers

Primary: 220V, 50/60Hz., 120V or 240V, 50/60Hz
Secondaries:
560V & 100V (280-50-0-50-280) at 200mA center tapped
6.3V (3.15-0-3.15) at 6A center tapped

198,74 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 56 days after order.
Delivery time: ca. 9 weeks (DE - int. shipments may differ)

Description
Reviews

Schematic

Primary (input) Voltage

120Vrms or 240Vrms, 50/60Hz

Secondary (output) Voltage

560V & 100V (280-50-0-50-280)@200mA & 6.3V(3.15-0-3.15)@6A

Bobbin Material

Glass Filled Nylon 6/6

Flamability Rating

Class B 130°C

Core Material

M6 29 ga. line grain oriented steel

Termination

UL1015, 18 ga. lead wire

Mounting

Powder coated steel end bells

Weight

6.75 lbs.

Dimensions

3.22" (L) x 4.2" (W) x 3.82" (H)

Dimensional Drawing

15000-EI125-200-0X

Manual

XPWR139-120/240 Manual

Compliance

Item information	Value
Secondary:	50V - 150V 300V - 320V
Shipping weight:	1,30 kg
Item weight:	1,00 kg
keine preissuchmaschinen:	1

There are no reviews yet.
