Edcor XS1100

42,88 €
(36,03 € excl. vat)
Recommended retail price: 48,95 €
Scale price:
  • from 4: 40,31 €*
  • from 10: 38,59 €*
  • from 20: 34,30 €*
* Price per unit
Scale price:
  • from 4: 40,31 €*
  • from 10: 38,59 €*
  • from 20: 34,30 €*
* Price per unit
including 19% VAT., plus shipping
  • In stock!
  • Shipping time: 1 - 2 workdays
Order Now
Category
Item no.
  • EDCXS1100
Product weight
  • 0,30 kg
Shipping weight
  • 0,30 kg
Application
Compliance

Interesting items

  1. XS1100 to LL5402 Adaptor PCB
    XS1100 to LL5402 Adaptor PCB

    Average Rating: 5/55
    9,46 €
    (7,95 € excl. vat)
    including 19% VAT., plus shipping
  2. Don-Audio IRON - Transformer Output Module
    Don-Audio IRON - Transformer Output Module

    Average Rating: 5/55
    Special price: 8,64 €
    (7,26 € excl. vat)
    Old price: 12,94 €
    including 19% VAT., plus shipping

Description

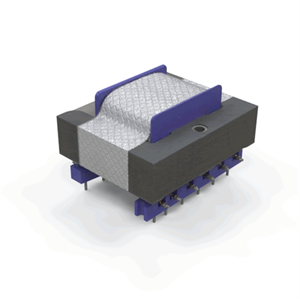

Products specifications for Edcor XS1100 transformer.
Schematic
Input Maximum Voltage 7.5Vrms
Turns Ratio 2+2:1+1
Primary (input) Impedance Low Impedance
Primary (input) DCR 104 Ohms & 120 Ohms
Secondary (output) Impedance >600 Ohms
Secondary (output) DCR 64 Ohms & 56 Ohms
Frequency Response 10~50K Hz., <1dBu
THD+Noise <0.01% @ 1K Hz.
Plot Frequency Response/THD+N
Copper Shielding Yes
Bobbin Material Glass Filled Nylon 6/6
Flamability Rating Class B 130°C
Core Material M6 29 ga. line grain oriented steel
Termination 12 pin PCB
Mounting Printed circuit board mounted (PCB)
Weight 0.45 lbs.
Dimensions 1.875" (L) x 1.54" (W) x 1.125" (H)
Dimensional Drawing 15000-EI625-050-P12
Manual XS1100 Manual
Compliance

Customer-Pics

Log in to upload a pic!

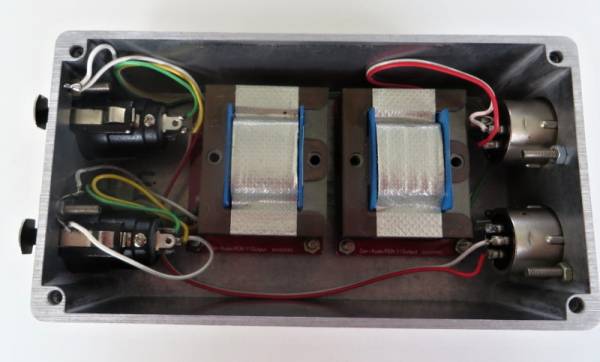

"Ich habe mir ein Trenntrafo mit zwei Edcor XS1100 in Stereo gebaut für meine aufnahmen,im Heimstudio. \r\n"
