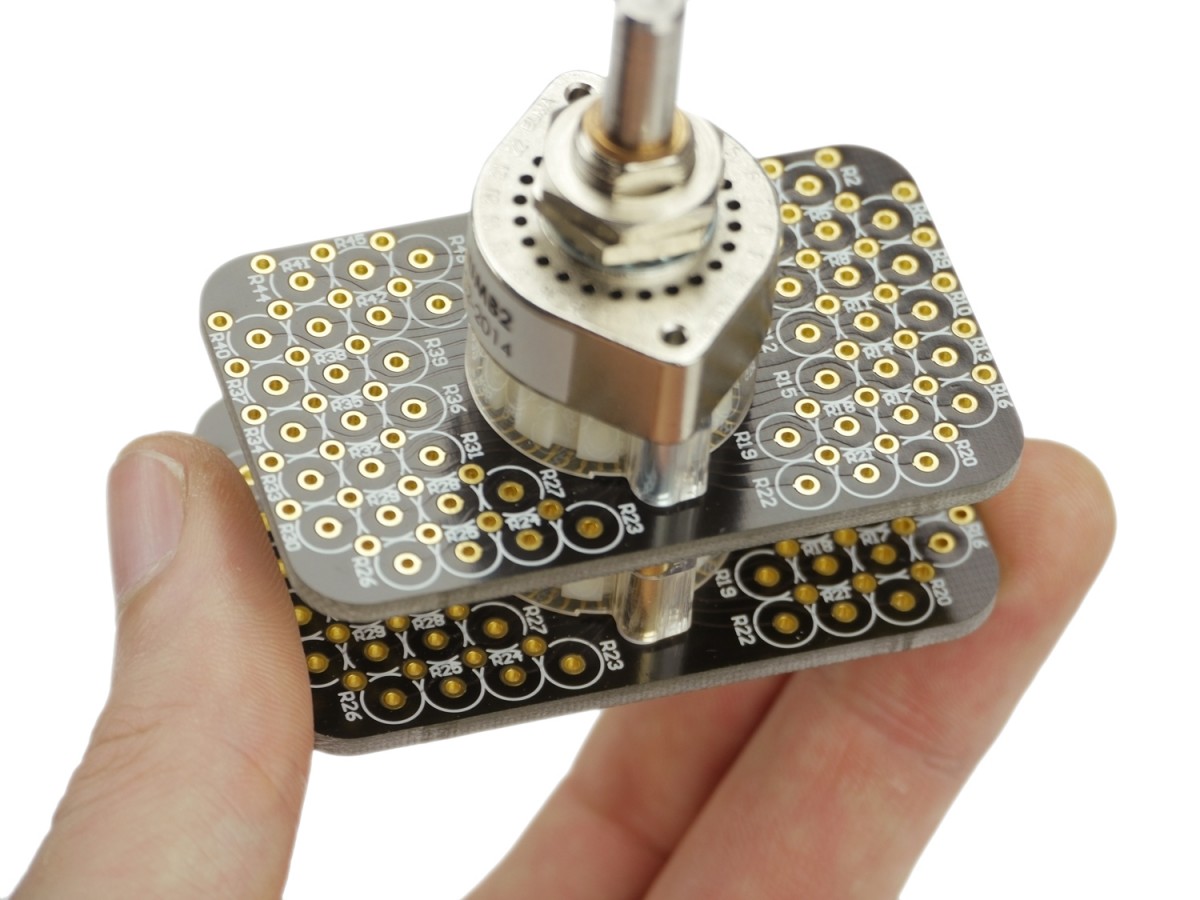

Elma A47 Jumbo High-End Rotary switch 2 Channels

Elma A47 Jumbo High-End Rotary switch 2 Channels

SKU: DAEL04JUM-2
GTIN: 0700667448749
Category: Switches
Manufacturers: Elma

47 Positions high-end shunt-type Attenuator switch for big resistors

Wafer / Channels: 1 Channel / Mono+ 26,74 €

2 Channels / Stereo+ 103,36 €

4 Channels / Quad+ 315,87 €

235,62 €

incl. 19% VAT. , plus

Manufacturers recommended retail price: 269,00 €

(Save 12.41%, i.e. 33,38 €)

Must be ordered. Ready for shipment in 28 days after order.
Delivery time: 29 Workdays (DE - int. shipments may differ)

Description
Reviews

If you wish the best possible audio quality, this switch is the best choice because it switches each single resistor separate without compromises like a series switching type. This switch offers the highest quality range in the A47 series and is designed for high-end shunt resistors. We recommend Audio Note Tantalum or Shinkoh Tantalum resistors who make a perfect sounding passive audio switch together.

47 Positions, with selectable stop
Compact measures; 36 mm height
2 Channels / Wafers
Recommended for resistors up to 5 mm diameter
excellent acoustic quality and precise switching feel
Elma low-bounce contactsystem with 3 um gold-coating
Concentric version is possible, on request
Optionale Motor and Remote upgrade kit
For Studio-Consoles, High-End home and cinema applications

If you like us to preassemble high-end Audio Note Tantalum resistors, just give us a mail and we will make an offer for you.
Possible standard values are 10k, 20k, 50k, 100k, 200k, 500k. Also custom values are possible. Ask for a quote now.

Function:	Remote-Controllable Attenuator
Shipping weight:	0,10 kg
Item weight:	0,10 kg

There are no reviews yet.
