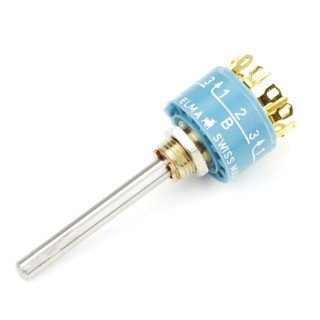

Elma Rotary switch Type 01 Eyelets 1 Wafer 1 x 6 Non-Shorting (Angle 60°) 01-1164

SKU: DA00294
HAN: DA01-1164
Manufacturers: Elma

47,15 €

incl. 19% VAT. ,

From	Unit price
4	46,21 €*
6	44,79 €*

Made to order
Delivery time: ca. 7 weeks (DE - int. shipments may differ)

Description
Reviews

Compact 6 positions selector switch, 25,000 switching cycles with up to 6.0 Ncm switching torque, gold plated contacts: 3 micron, robust metal housing with metal shaft, optional IP68 front panel sealing, operating temperature range: -40 to +85°C, various options and customization.

Compact 6 positions switch
25,000 switching cycles with up to 6.0 Ncm switching torque (4Ncm standard)
Gold plated contacts: 3 micron
Robust metal housing with metal shaft
Optional IP68 front panel sealing
Operating temperature range: -40 to +85°C
Various options and customization
4mm shaft diameter / 39,2mm shaft lenght (standard)

Options:

Choose your Pins

Elma Type 01 switch eyelets and pcb pins

PCB Pins

Eyelets

Select Wafers, Poles x Positions

Elma poles position diagram

For multiple wafers divide the poles by the wafers to get the number of poles for each wafer.
Example: if you select 2 Wafers and 2 Poles you have 1 Pol on each wafer.

Other possible shaft options:
