Currently this product is out of stock. See alternate products

You can order this article - Please notice the processingtimes that can vary - For informations for the processingtimes please contact us or we will sent you the information about the processing time by recieving your order.

This product consists of

  1. Elma Rotary switch Type 01 Eyelets 2 Wafer 1 x 12...
    Elma Rotary switch Type 01 Eyelets 2 Wafer 1 x 12 Shorting, endless 01-2123
    starting from 59,95 €
    (50,38 € excl. vat)
    including 19% VAT., plus shipping

Corresponding to that:

  1. Elma Stop Pin for Type 01 Switches
    Elma Stop Pin for Type 01 Switches
    0,92 €
    (0,77 € excl. vat)
    including 19% VAT., plus shipping

Recommended accessories:

  1. Shaft Adapter 4mm to 6mm for Elma Switches
    Shaft Adapter 4mm to 6mm for Elma Switches
    0,99 €
    (0,83 € excl. vat)
    including 19% VAT., plus shipping
  2. Shaft Adapters
    Shaft Adapters
    0,99 €
    (0,83 € excl. vat)
    including 19% VAT., plus shipping

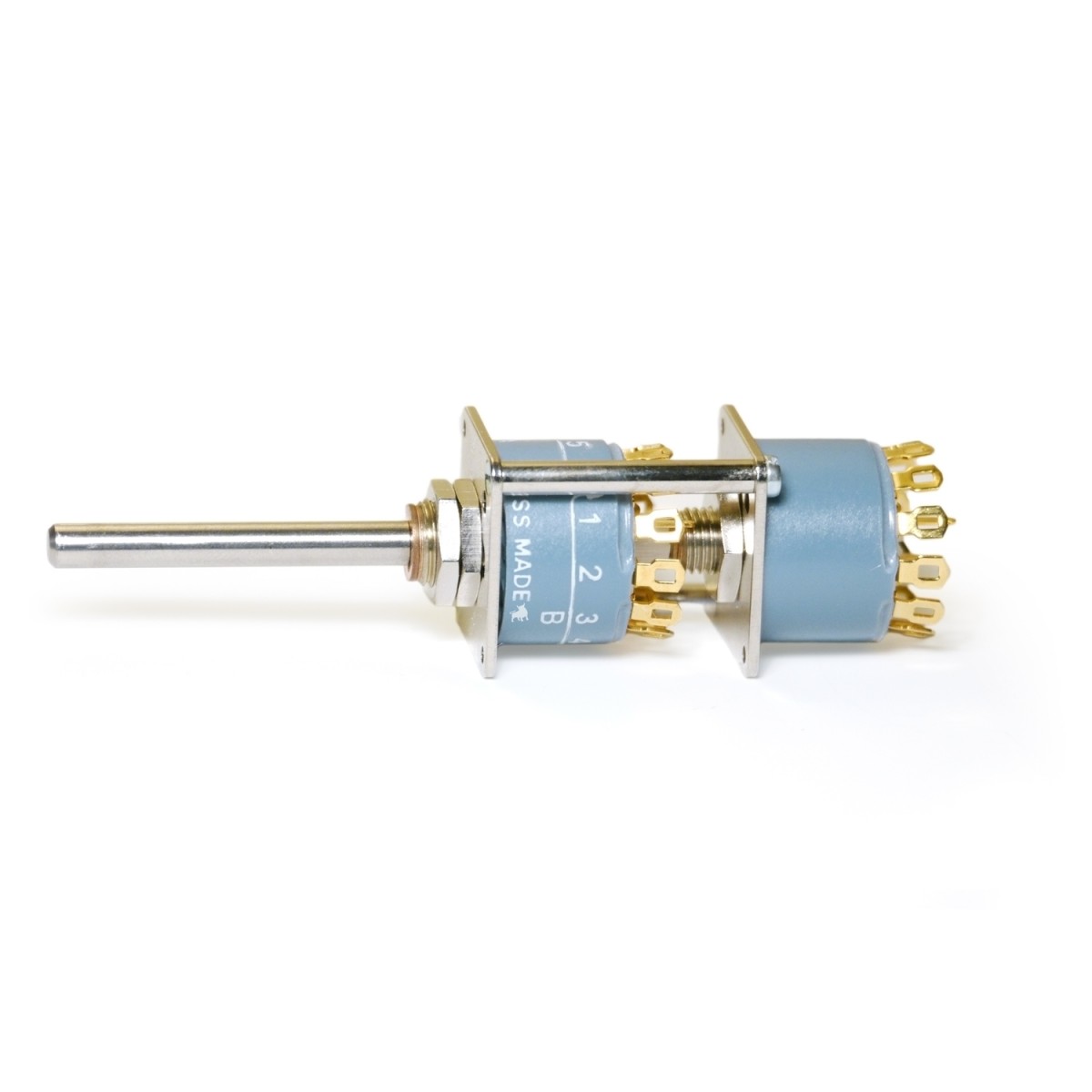

Elma Rotary switch Type 01 Eyelets 2 Wafer 1 x 12 Shorting, endless 01-2123

71,23 €
(59,86 € excl. vat)
Recommended retail price: 92,69 €
You save 23%, that is 21,46 €
including 19% VAT., plus shipping
  • Made to order
  • Shipping time: 1 - 2 workdays
Order Now
Category
Manufacturer
Item no.
  • DA00308
Shipping weight
  • 0,10 kg

Description

Compact 12 positions selector switch, 25,000 switching cycles with up to 6.0 Ncm switching torque, gold plated contacts: 3 micron, robust metal housing with metal shaft, optional IP68 front panel sealing, operating temperature range: -40 to +85°C, various options and customization.

  • Compact 12 positions switch endless version
  • 25,000 switching cycles with up to 6.0 Ncm switching torque (4Ncm standard)
  • Gold plated contacts: 3 micron
  • Robust metal housing with metal shaft
  • Optional IP68 front panel sealing
  • Operating temperature range: -40 to +85°C
  • Various options and customization
  • 4mm shaft diameter / 39,2mm shaft lenght  (standard)



Options:

Choose your Pins

Elma Type 01 switch eyelets and pcb pins

  • PCB Pins
  • Eyelets


Select Wafers, Poles x Positions

Elma poles position diagram
For multiple wafers divide the poles by the wafers to get the number of poles for each wafer.
Example: if you select 2 Wafers and 2 Poles you have 1 Pol on each wafer.


Other possible shaft options:
  • 3mm shaft diameter / 59mm lenght
  • 6mm shaft diameter / 28mm lenght

This rotary switch is also available as concentric version. Please get in contact with us - we will make an offer for you for the concentric version.
