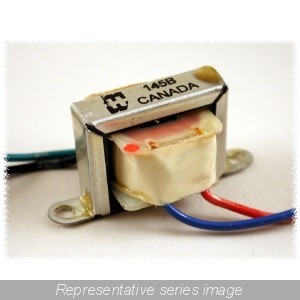

Hammond Audio Transformer Driver Chassis Mount 145L

20,87 €

incl. 19% VAT. , plus

Manufacturers recommended retail price: 22,49 €

(Save 7.2%, i.e. 1,62 €)

From	Unit price / Stk
10	20,55 €*
25	20,07 €*

Stk

Features

Small, economical, open, two hole horizontal bracket mount.
Insulated, color coded flexible leads, 4" long minimum (143, 144 & 145 Series) or 3" long minimum (146 Series).
For a similar version designed to be PC Board mounted, refer to the 148 and 149 series.
Frequency response 150 Hz. to 15 Khz. (+/- 1 db, reference 1000 Hz.)
When operating at impedances below nominal, power capability and the frequency spectrum are proportionately lower; conversely, at higher impedances power capability and frequency spectrum will be proportionately higher.
Net weight: 0.5 oz. (143, 144, 146 Series) & 1.4 oz. (145 Series).

Shipping weight:	0,05 kg
Item weight:	0,05 kg
