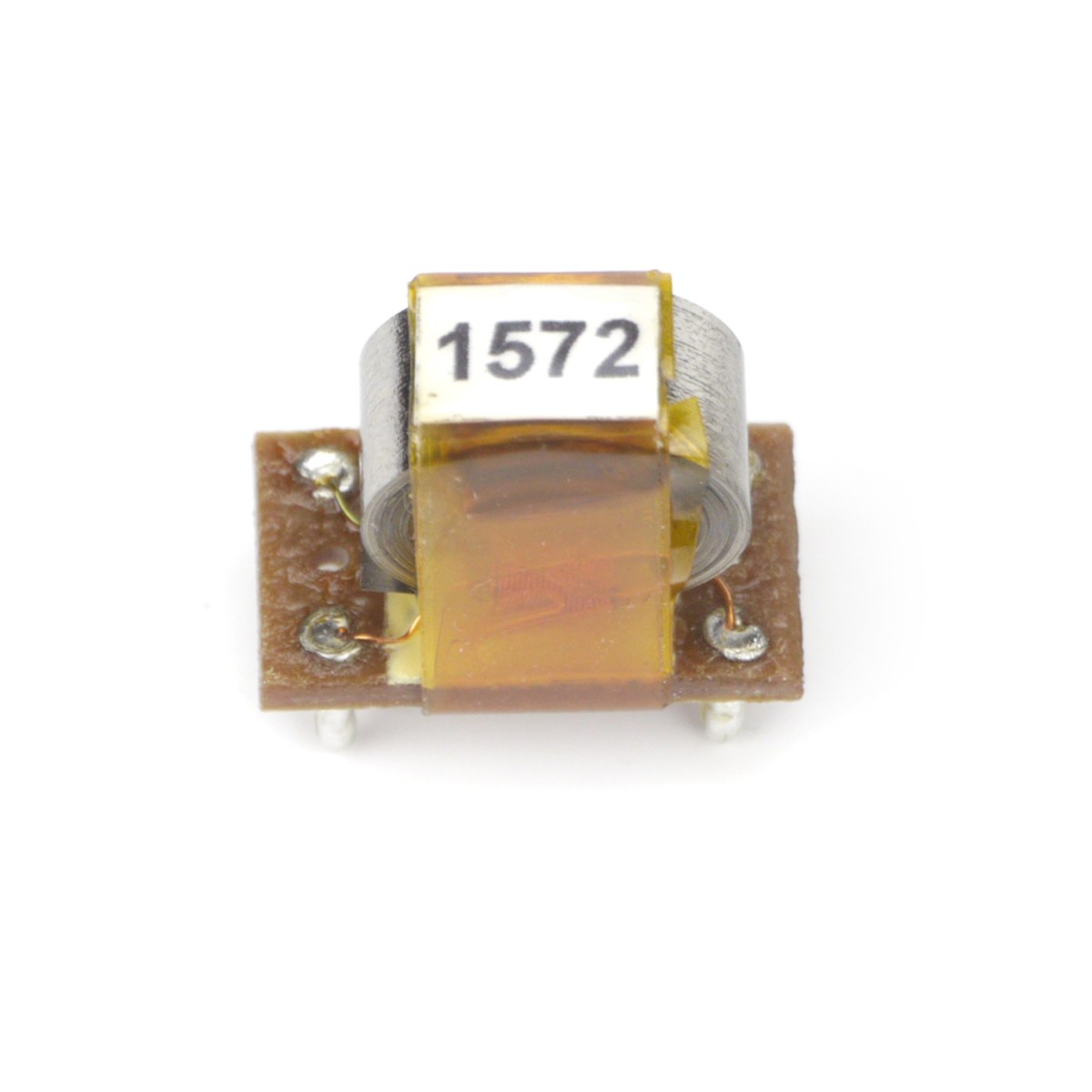

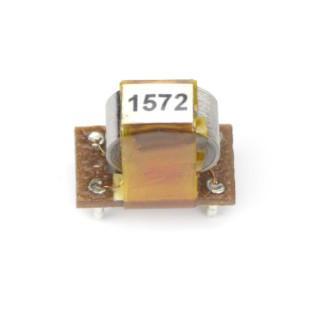

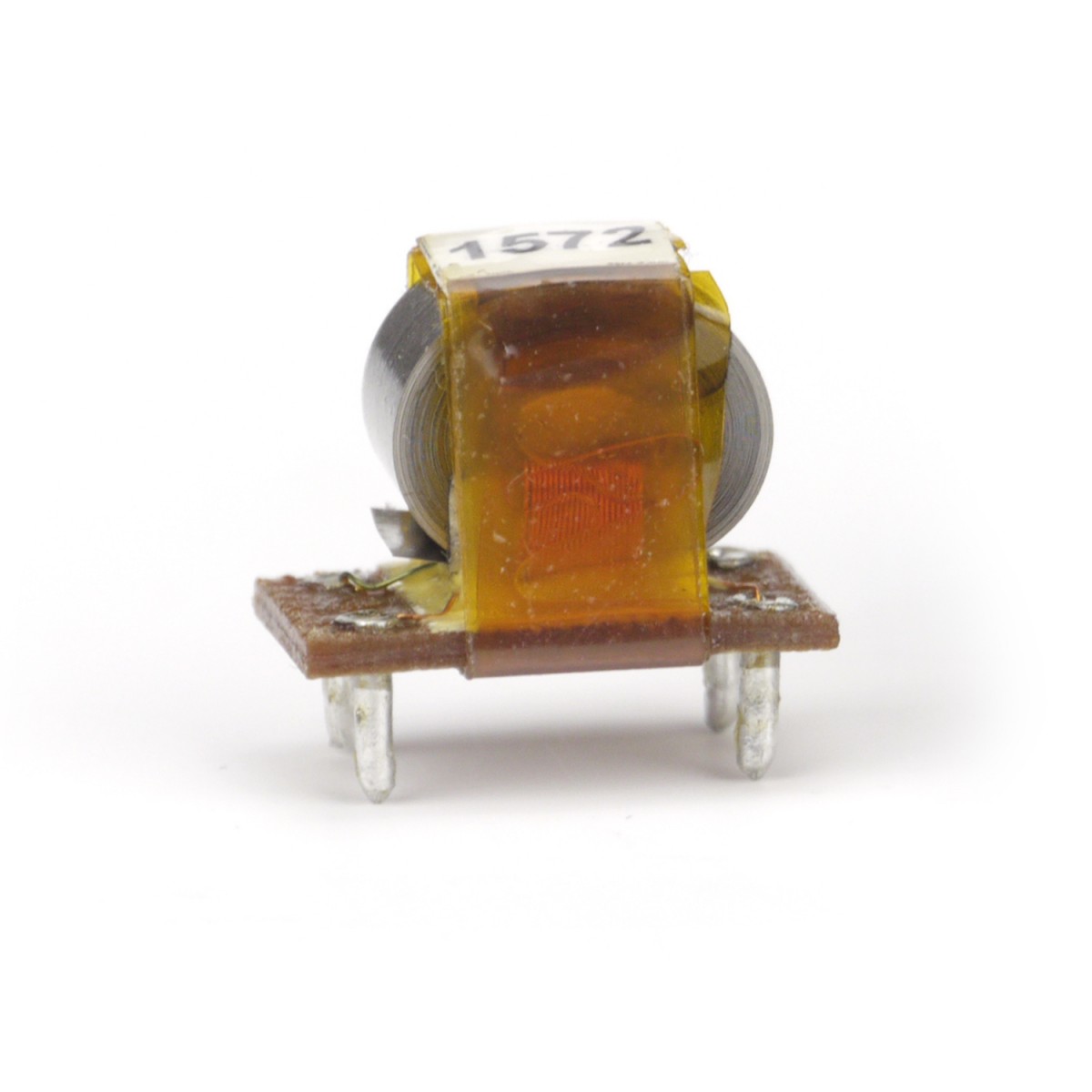

Lundahl LL1572 Digital Audio isolation transformer

32,80 €
(27,56 € excl. vat)
Scale price:
  • from 4: 34,00 €*
  • from 10: 29,90 €*
* Price per unit
Scale price:
  • from 4: 34,00 €*
  • from 10: 29,90 €*
* Price per unit
including 19% VAT., plus shipping
  • In stock!
  • Stock: More than 10 available
  • Shipping time: 1 - 2 workdays
Order Now
Category
Manufacturer
Item no.
  • DALL1572
Product weight
  • 0,00 kg
Shipping weight
  • 0,10 kg
Application
Compliance

Interesting items

  1. Neutrik NC3MD-LX-B XLR Chassis Connector
    Neutrik NC3MD-LX-B XLR Chassis Connector
    3,92 €
    (3,29 € excl. vat)
    including 19% VAT., plus shipping
  2. Elma Rotary switch Type 04 Eyelets 3 Wafers 6 x 6...
    Elma Rotary switch Type 04 Eyelets 3 Wafers 6 x 6 Non-Shorting °30, 04-3264

    Average Rating: 5/55
    129,95 €
    (109,20 € excl. vat)
    including 19% VAT., plus shipping

Description

The LL1572, LL1573, LL1589 are pulse transformer designed for digital audio. They are designed with a rather large amorphous metal core and have thus low copper resistance, high signal tolerance and low internal capacitance. The amorphous core has a very high mu. Thus, when used, the transformer should be protected from DC current.

LL1572 isolation transformer specifications

Turns ratio: 1:1
Dims: (Length x Width x Height above PCB (mm)) 15 x 9 x 11
Spacing between pins 1 and 2: 10.16 mm (0.4")
Spacing between pins 1 and 3: 5.08 mm (0.2")
Rec. PCB hole diameter: 1.5 mm
Weight: 2 grams
