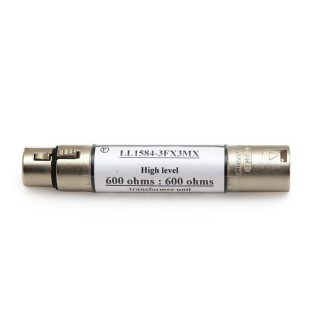

Lundahl LL1584-3FX3MX Audio transformer isolation unit

LL1584-3FX3MX is a transformer isolation unit. The LL1584-3FX3MX is used to break up ground loops in balanced systems, for instance to eliminate hum when connecting active speakers.

Transformer turns ratio                                    1:1
Connectors:                                                        XLR-F — XLR-M
Cable Length:                                                     No cable
Max Prim. Level. 1% dist, 50Hz:                     17 dBU

Electrical characteristics

• Transformer static resistance primary + secondary:                       640 ?

• Core:                                                                                                      Amorphous strip core

• Max signal level (THD less than 1%):                                                  +17 dBU @ 50 Hz

• No-load impedance @0 dBU, 50Hz                                                     11 k? typically

• Frequency response @ 0 dBU (source 150?, load 10k?)                  10 Hz - 70 kHz +/- 0.5 dB

• Distortion (THD) at 50 Hz (source 150?)                                           < 0.2 % @ 50 Hz, for all signal levels -2 through

                                                                                                                          +16dBU

• Loss across transformer with load 10k?                                           0.5 dB

• Isolation between input and output sides:                                         1 kV
