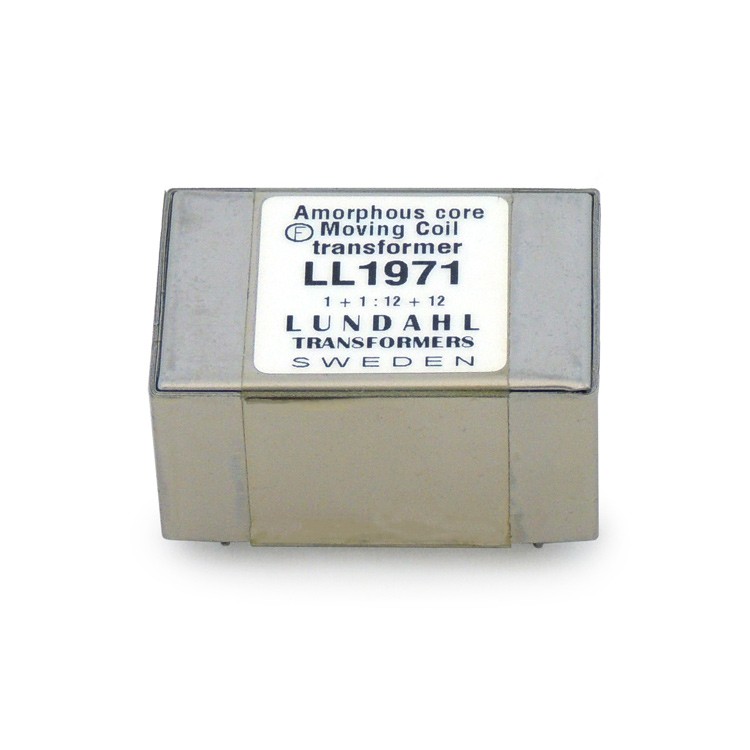

Lundahl LL1971 MC transformer

270,55 €
(227,35 € excl. vat)
including VAT., plus shipping
  • Must be ordered. Ready for shipment in 14 days
  • Shipping time: 15 - 16 workdays
Order Now
Category
Manufacturer
Item no.
  • LL1971
Product weight
  • 0,01 kg
Shipping weight
  • 0,00 kg

Interesting items

  1. 2-Pin header strip male 2,54mm, goldplated 1x2
    2-Pin header strip male 2,54mm, goldplated 1x2
    0,43 €
    (0,36 € excl. vat)
    including VAT., plus shipping

  2. Mini Jumper 2,54mm, goldplated contacts
    1,16 €
    (0,97 € excl. vat)
    including VAT., plus shipping

Description

LL1971 is a high performance moving coil step-up transformer. The transformer combines our unique uncut amorphous cobalt core and our dual coil structure with Cardas high purity copper wire in an oversized design. The objective is to provide the best possible MC transformer, cost-no-object. The dual-coil structure greatly improves immunity to external magnetic fields from power supplies, motors etc. The transformer is housed in a mu-metal can.

Turns ratio:        1 + 1 : 12 + 12

Dimensions : (L x W x H above PCB, in mm) 43 x 28 x 22

Spacing between pins 5.08 mm:  (0.2")

Spacing between rows of pins: 30.5 mm  (1.2")

Rec. PCB hole diameter: 1.5 mm

Weight: 92 g
