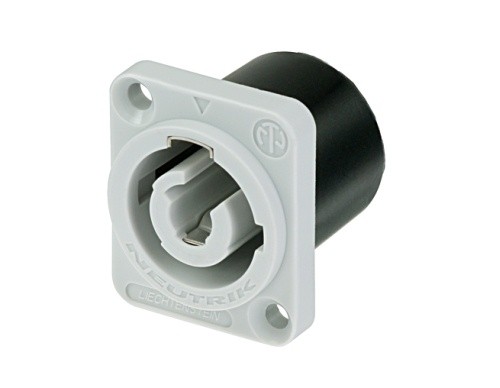

Neutrik NAC3MPB-1-WOT powerCON 20 A
Description
Chassis connector, power-out, 3/16'' flat tab terminals, grey, without insulation divider
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
NAC3MPA-1 NAC3MPA-1-WOT
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Features & Benefits
- Locking 20 A / 250 V ac appliance coupler
- 3 contacts for line, neutral and premating safety ground
- Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
- Fast and easy twist lock latching system
- Extremely robust and reliable
- Ergonomic design
- User friendly latch design for easy handling
- UL, cUL recognized components
VDE certified - Branded with unique hologram - guarantees genuine and authentic Neutrik product
Product
Title
NAC3MPB-1-WOT
Type
Chassis
Gender
male
Electrical
Contact resistance
? 3 m?
Dielectric strength
4 kVdc / 2.8 kVac
Insulation resistance
> 0.1 G? (after damp heat test IEC 68-2-30)
Number of electronical contacts
2 + PE
Rated current per contact
20 A rms
Rated voltage
250 V ac
Mechanical
Lifetime
> 1000 mating cycles
Locking device
Quick Lock
Mounting direction
Front mounting
Chassis shape
D
Material
Contact plating
2 µm Ag
Locking element
Steel Ck67
Shell
Polyamide (PA 6 30 % GR)
Contacts
Bronze (CuNi1Si0.2)
Environmental
Flammability
UL 94 V-0
Temperature range
-30 °C to +80 °C
Product specific
Coding
B-type for power outlet (color coding gray)
