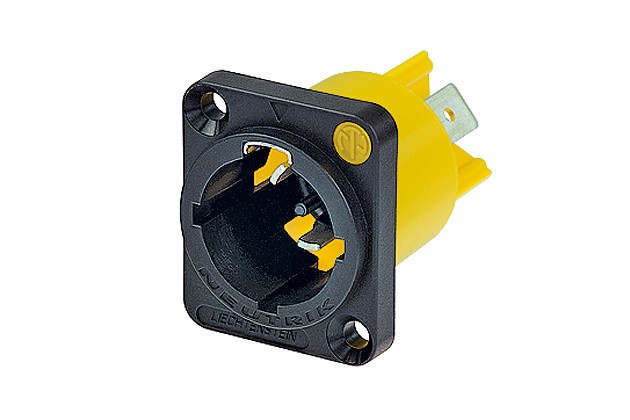

Neutrik NAC3MPX powerCON TRUE1 Chassis Connector

3,13 €
(2,63 € excl. vat)
including VAT., plus shipping
  • Made to order
Category
Manufacturer
Item no.
  • NAC3MPX
Product weight
  • 0,01 kg
Shipping weight
  • 0,02 kg
Gender

Interesting items

  1. Neutrik powerCON TRUE1 Cable Connector NAC3FX-W
    Neutrik powerCON TRUE1 Cable Connector NAC3FX-W
    8,59 €
    (7,22 € excl. vat)
    including VAT., plus shipping
  2. Neutrik NC3FAV2 XLR Chassis Connector
    Neutrik NC3FAV2 XLR Chassis Connector

    Average Rating: 5/55
    1,21 €
    (1,02 € excl. vat)
    including VAT., plus shipping

Description

NAC3MPX is discontinued. Please refer to the new model NAC3MPX-TOP

Appliance inlet connector, 1/4'' flat tab terminals

The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.



Features & Benefits


Appliance inlet

  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • ENEC certified according to IEC 60320
  • UL recognized components
  • IP65 ingress protection in mated condition and unmated in combination with SCNAC-MPX
Product
Title
NAC3MPX
Electrical
Contact resistance
? 3 m?
Dielectric strength
4 kVdc / 2.8 kVac
Insulation resistance
> 0.1 G? (after damp heat test)
Number of electronical contacts
2 + PE
Rated current per contact
16 A rms (USA: 20 A)
Rated voltage
250 V ac
Mechanical
Lifetime
> 5000 mating cycles
Wiresize
2.5 mm²
Wiresize
12 AWG
Environmental
Flammability
UL 94 V-0
Temperature range
- 30 °C - +80 °C
