Neutrik NBB75DFI D Series

SKU: NBB75DFI-DON

8,50 €

incl. 19% VAT. ,

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

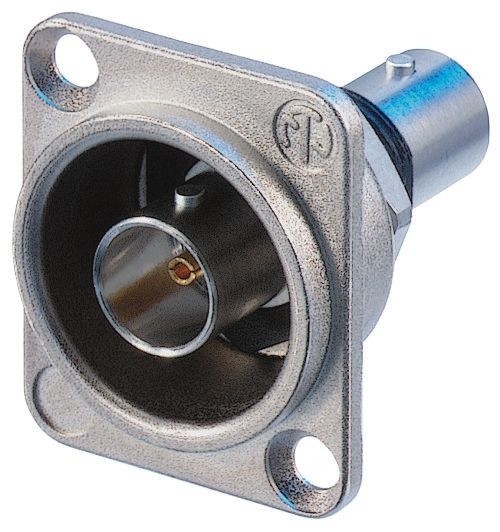

Isolated BNC chassis connector, feedthrough in nickel D-shape housing

Neutrik's BNC chassis connectors offer a true 75 ? design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard).

Features & Benefits

Gold plated cage type center contact
True 75 ? design meets the stringent HD requirements
Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
Standard D-shape housing - provides flush mounting and protection from demage
Color coding possible

New cage type contact

Closed contact design - extremely robust
Gold plated cage type clip - best possible shielding and lowest contact resistance

Product

Title

NBB75DFI

Connection Type

BNC 75 ?

Gender

female

Electrical

Signal Type

HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV

Contact resistance

? 3 m? (inner)

Contact resistance

? 2 m? (outer)

Dielectric strength

1,5 kVdc

Impedance

75 ?

Insulation resistance

> 5 G?

Rated voltage

<50 V

VSWR

?1.03/>37 dB up to 1 GHz
?1.05/>32 dB up to 2 GHz
?1.08/>28 dB up to 3 Ghz

Mechanical

Insertion force

< 25 N

Lifetime

> 1000 mating cycles

Locking device

Bayonett

Mounting direction

Front mounting

Chassis shape

Material

Contacts

Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)

Insert

PTFE

Shell

Polyacetal (POM) (Insulation Sheell)

Shell plating

Optalloy®

D-Shape housing

Zinc diecast (ZnAl4Cu1) gal Ni plating

Environmental

Temperature range

-30 °C to +85 °C

Item information	Value
Series:	D Series
