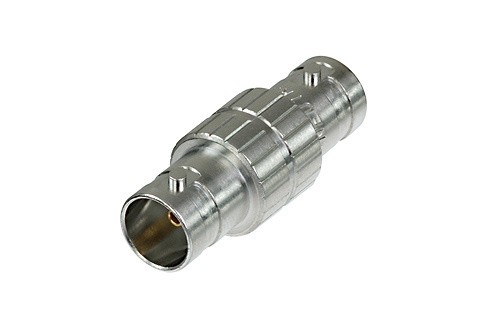

Neutrik NBB75FA BNC feed through coupler

SKU: NBB75FA-DON

7,41 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

The BNC feed through coupler offers a true 75 ? design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.

Features & Benefits

Gold plated cage type center contact
True 75 ? design meets the stringent HD requirements

New cage type contact

Closed contact design - extremely robust
Gold plated cage type clip - best possible shielding and lowest contact resistance

Product

Title

NBB75FA

Connection Type

BNC 75 ?

Gender

female

Electrical

Signal Type

HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV

Contact resistance

? 3 m? (inner)

Contact resistance

? 2 m? (outer)

Dielectric strength

1.5 kVdc

Insulation resistance

> 5 G?

Rated voltage

<50 V

VSWR

?1.03/>37 dB up to 1 GHz
?1.05/>32 dB up to 2 GHz
?1.08/>28 dB up to 3 Ghz

Mechanical

Insertion force

< 25 N

Lifetime

> 1000 mating cycles

Locking device

Bayonett

Material

Contacts

Brass (CuZn39Pb3) (ground contact)

Insert

PTFE

Shell

Brass (CuZn39Pb3)

Environmental

Temperature range

-30 °C bis +85 °C

Item information	Value
Series:	BNC bushing BNC feed through coupler
