Neutrik NBTC75BLI5 rearTWIST HD Tiny BNC Cable Connector

Neutrik NBTC75BLI5 rearTWIST HD Tiny BNC Cable Connector

SKU: NBTC75BLI5-DON

5,46 €

incl. 19% VAT. ,

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

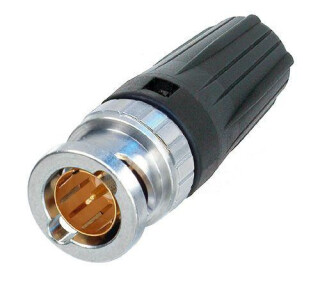

The rearTWIST HD Tiny BNC cable connector is optimized for small cable diameters. The additional leading ferrule eases the critical assembly of multicore or tiny cables.

Like all Neutrik BNCs it offers a true 75 ? design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Suitable cables:
CAE MC75, Procom, Sommer 600-0701, Sommer 600-20-03 (05), Sommer 600-025-03 (05)

Crimp size:
Pin: 1.6 mm (square)
Shield: 4.06 mm (hex)

Features & Benefits

“rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
Optimized assembly for mutlicore or tiny cables
True 75 ? design meets the stringent HDTV / DVD requirements
Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
Snug-fit center pin insert provides tactile feedback
Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
Excellent cable protection and retention
Precise Swiss machined brass parts for outstanding durability
Accessories include color coded boots in 10 standard colors, crimp tool and dies

Product

Title

NBTC75BLI5

Connection Type

BNC 75 ?

Gender

male

Electrical

Contact resistance

? 3 m? (inner)

Contact resistance

? 2 m? (outer)

Dielectric strength

0,75 kVdc

Impedance

75 ?

Insulation resistance

> 5 G?

Rated voltage

<50 V

VSWR

?1.10/>26 dB up to 1 GHz
?1.14/>24 dB up to 2 GHz
?1.22/>20 dB up to 3 Ghz

Mechanical

Cable O.D.

2.9 mm

Cable retention

> 30 N (Center)

Crimp size

4,06 Hex crimp (shield) acc. MIL22520/5-39(B)

Crimp size (pin)

1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)

Insertion force

< 25 N

Lifetime

> 1000 mating cycles

Locking device

Bayonett

Cable anchoring

Jacket crimping

Material

Contacts

Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)

Insert

PTFE

Shell

Brass (CuZn39Pb3)

Shell plating

Optalloy®

Environmental

Temperature range

-30 °C to +85 °C

Contact crimpability

Complies with IEC 60803 and IEC 60352-2

Item information	Value
Series:	rearTWIST HD Tiny BNC Cable Connector
