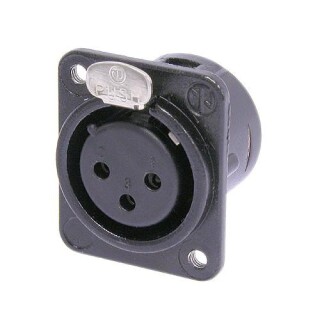

Neutrik NC3FDM3-L-BAG-1

SKU: NC3FDM3-L-BAG-1
HAN: NC3FDM3LBAG-1
Category: Plugs & Jacks
Manufacturers: Neutrik

3 pole female receptacle, solder cups, black metal housing, silver contacts, M3 mounting holes Universal D-size metal body XLR panel mount series. UL recognized component.

5,38 €

incl. 19% VAT. , plus

103 In stock
Delivery time: 1 Workdays (DE - int. shipments may differ)

Description
Reviews

Robust "D" metal shell

Standardized D sized 24 mm panel cutout

Solder cups on 3 - 7 pole version

Product

Title

NC3FDM3LBAG-1

Connection Type

XLR

Gender

female

Electrical

Capacitance between contacts

= 4 pF

Contact resistance

= 5 mO

Dielectric strength

1,5 kVdc

Insulation resistance

> 10 GO (initial)

Rated current per contact

16 A

Rated voltage

< 50 V

Mechanical

Insertion force

= 20 N

Withdrawal force

= 20 N

Lifetime

> 1000 mating cycles

Wiresize

max. 2.5 mm²

Wiresize

max. 14 AWG

Wiring

Solder contacts

Locking device

Latch lock

Mounting direction

rear

Chassis shape

Mounting

Mounting holes with M3 threads

Material

Contact plating

2 µm Ag over 2 µm Ni

Contacts

Bronze (CuSn8)

Insert

Polyamide (PA 6.6 30 % GR)

Locking element

Steel Ck67

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Black chromium

Environmental

Approvals

Flammability

UL 94 HB

Standard compliance

IEC 61076-2-103

Protection class

IP 40

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Item information	Value
Contacts:	Silver pins
Series:	DL D
Pins:	3-Pol
Shell:	Black chromium
Gender:	female
Shipping weight:	0,10 kg
