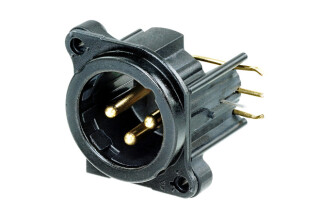

Neutrik NC3MBHR-B XLR Chassis Connector

SKU: NC3MBHR-B-DON

2,51 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

3 pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, steel retention lug, lateral right PCB mount, black chrome shell

Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice. UL recognized component.

Features & Benefits

Smallest XLR receptacles, highest packing density
Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
Housing flammability UL94V-0

Product

Title

NC3MBHR-B

Connection Type

XLR

Gender

male

Electrical

Capacitance between contacts

? 4 pF

Contact resistance

? 6 m?

Dielectric strength

1,5 kVdc

Insulation resistance

> 10 G? (initial)

Rated current per contact

6 A

Rated voltage

< 50 V

Grounding Options

Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1

Mechanical

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Wiring

Laterial right PCB mount

Locking device

Latch lock

Mounting direction

Rear mounting

Chassis shape

Mounting

B-Screw

Material

Contacts

Brass (CuZn35Pb2)

Insert

Polyamide (PA 6.6 30 % GR)

Locking element

Steel Ck67

Ring

Zinc diecast (ZnAl4Cu1)

Flange

Black Metal

Environmental

Approvals

Flammability

UL 94 V-0

Standard compliance

IEC 61076-2-103

Protection class

IP 40

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Item information	Value
Series:	B
