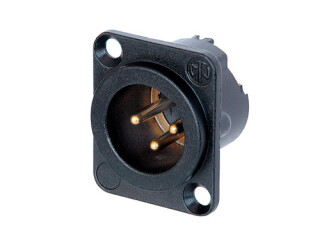

Neutrik NC3MD-LX-B XLR Chassis Connector

4,43 €
(3,72 € excl. vat)
including VAT., plus shipping
  • In stock!
  • Shipping time: 1 - 2 workdays
Order Now
Category
Manufacturer
Item no.
  • NC3MD-LX-B-DON
Series
Gender

Interesting items

  1. Neutrik NC3FD-LX-B XLR Chassis Connector
    Neutrik NC3FD-LX-B XLR Chassis Connector
    5,12 €
    (4,30 € excl. vat)
    including VAT., plus shipping
  2. Lundahl LL2912 Ribbon Microphone Transformer
    Lundahl LL2912 Ribbon Microphone Transformer

    Average Rating: 5/55
    Special price: 69,89 €
    (58,73 € excl. vat)
    Old price: 96,83 €
    including VAT., plus shipping

Description

3 pole male receptacle, solder cups, black metal housing, gold contacts

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.



Features & Benefits

  • All metal housing offers best overall RF protection and electromagnetic shielding
  • Duplex ground contact for excellent contact integrity between chassis and cable connector
  • Male connector's retention bar replaces plastic design with all metal version improving pull-out force
  • Larger solder contacts for easier termination
  • Optional connection to easily join pin1 to chassis ground
  • D-style housing provides installation compatibility with industry standard D mounting dimensions
Product
Title
NC3MD-LX-B
Connection Type
XLR
Gender
male
Electrical
Capacitance between contacts
? 4 pF
Contact resistance
? 5 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
16 A
Rated voltage
< 50 V
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 2.5 mm²
Wiresize
max. 14 AWG
Wiring
Solder contacts
Locking device
Latch lock
Chassis shape
D
Material
Contact plating
0.2 µm Au hard alloy over 2 µm Ni
Contacts
Brass (CuZn35Pb2)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
