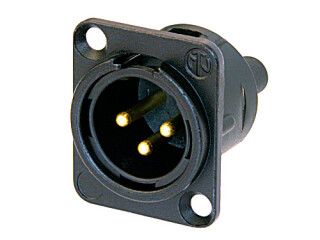

Neutrik NC3MD-S-1-B XLR Chassis Connector

SKU: NC3MD-S-1-B-DON

7,09 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: 51 Workdays (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

3 pole male receptacle, D-size metal body, screw terminals accommodating wire range 0.14mm² to 0.5mm² (AWG 26 -20), black metal housing, gold contacts, UL recognized component

Features & Benefits

Robust "D" metal shell
Standardized D sized 24 mm panel cutout
Screw terminals

Product

Title

NC3MD-S-1-B

Connection Type

XLR

Gender

male

Electrical

Capacitance between contacts

? 4 pF

Contact resistance

? 5 m?

Dielectric strength

1,5 kVdc

Insulation resistance

> 10 G? (initial)

Rated current per contact

3 A

Rated voltage

< 50 V

Mechanical

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Wiresize

0.14 mm² bis 0.5 mm²

Wiresize

26 AWG - 20 AWG

Wiring

screw terminals

Locking device

Latch lock

Mounting direction

Front mounting

Chassis shape

Material

Contact plating

0.2 µm Au hard alloy over 2 µm Ni

Contacts

Brass (CuZn35Pb2)

Insert

Polyamide (PA 6.6 30 % GR)

Locking element

Steel Ck67

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Black chromium

Environmental

Flammability

UL 94 HB

Standard compliance

IEC 61076-2-103

Protection class

IP 40

Temperature range

-30 °C to +80 °C

Contacts:	Goldplated pins
Series:	DL D
Shell:	Black chromium
