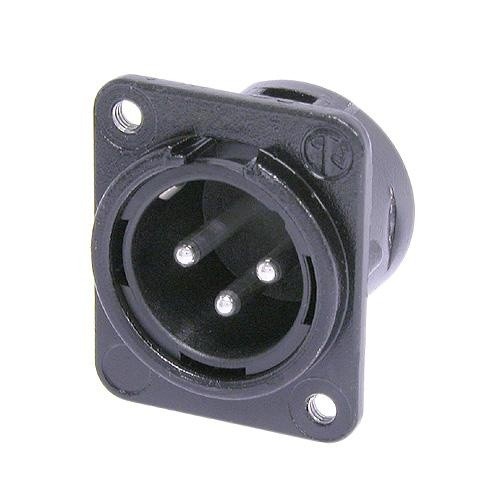

Neutrik NC3MDM3LBAG-1 XLR Chassis Connector

SKU: NC3MDM3LBAG-1-DON

4,80 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

3 pole male receptacle, solder cups, black metal housing, silver contacts, M3 mounting holes

Universal D-size metal body XLR panel mount series. UL recognized component.

Features & Benefits

Robust "D" metal shell
Standardized D sized 24 mm panel cutout
Solder cups on 3 - 7 pole version

Product

Title

NC3MDM3LBAG-1

Connection Type

XLR

Gender

male

Electrical

Capacitance between contacts

? 4 pF

Contact resistance

? 5 m?

Dielectric strength

1,5 kVdc

Insulation resistance

> 10 G? (initial)

Rated current per contact

16 A

Rated voltage

< 50 V

Mechanical

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Wiring

Solder contacts

Locking device

Latch lock

Mounting direction

Rear mounting

Chassis shape

Mounting

Mounting holes with M3 threads

Material

Contact plating

2 µm Ag over 2 µm Ni

Contacts

Brass (CuZn35Pb2)

Insert

Polyamide (PA 6.6 30 % GR)

Locking element

Steel Ck67

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Black chromium

Environmental

Approvals

Flammability

UL 94 HB

Standard compliance

IEC 61076-2-103

Protection class

IP 40

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Item information	Value
Contacts:	Silver pins
Series:	DL
Shell:	Black chromium
