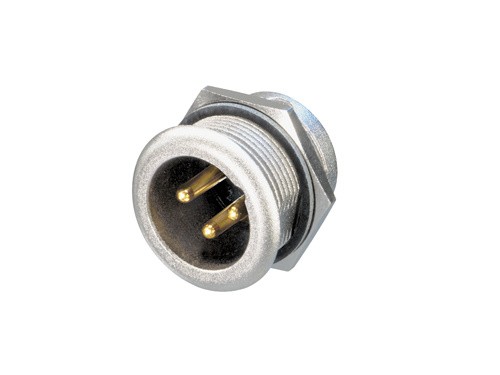

Neutrik NC3MPR-HD XLR Chassis Connector

SKU: NC3MPR-HD-DON

10,66 €

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

Heavy duty sealed male 3-pole XLR chassis connector for outdoor use, weatherproof applications as well as in a wide range of industrial applications.

Features & Benefits

Dust and water ingress sealing:
- IP67 in combinition with HD cable connector NC3FXX-HD*
- IP65 in combinition with HD cable connector NC3FX-HD*
Sealing gasket for water tight panel mount
Gold plated contacts
Fastening nut included

Product

Title

NC3MPR-HD

Connection Type

XLR

Gender

male

Electrical

Capacitance between contacts

? 4 pF

Contact resistance

? 5 m?

Dielectric strength

1,5 kVdc

Insulation resistance

> 10 G? (initial)

Rated current per contact

16 A

Rated voltage

< 50 V

Mechanical

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Wiring

Solder contacts

Locking device

Latch lock

Mounting direction

Front mounting

Chassis shape

Material

Contact plating

0.2 µm Au over 2 µm Ni

Contacts

Brass (CuZn39Pb3)

Insert

Polyamide (PA 6.6 30 % GR)

Locking element

Steel Ck67

Gasket

Tesnit®

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Nickel

Environmental

Flammability

UL 94 HB

Standard compliance

IEC 61076-2-103

Protection class

IP 65

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Item information	Value
Series:	MPR HD
Shell:	Nickel
