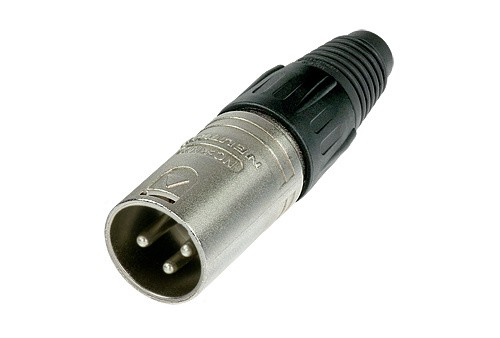

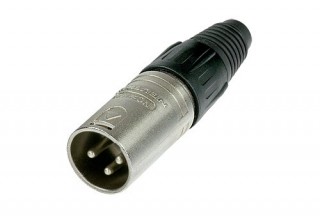

Neutrik NC3MX XLR Cable Connector

SKU: NC3MX-DON
GTIN: 7613187003165
HAN: NC3MX
Category: Plugs & Jacks
Manufacturers: Neutrik

3,53 €

incl. 19% VAT. , plus

6 pcs In stock
Delivery time: 1 Workdays (DE - int. shipments may differ)

pcs

Description
Reviews

3 pole male cable connector with Nickel housing and silver contacts.

The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.

Features & Benefits

Rugged zinc diecast shell, long lasting and durable
Chuck type strain relief system for secure clamping of cables
Boot with rubber gland gives high protection against bending stresses
Coloured rings and boots available for coding and marking
UL recognized components

Product

Title

NC3MX

Connection Type

XLR

Gender

male

Electrical

Capacitance between contacts

? 4 pF

Contact resistance

? 3 m?

Dielectric strength

1,5 kVdc

Insulation resistance

> 10 G? (initial)

Rated current per contact

16 A

Rated voltage

< 50 V

Mechanical

Cable O.D.

3.5 - 8.0 mm

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Wiresize

max. 2.5 mm²

Wiresize

max. 14 AWG

Wiring

Solder contacts

Locking device

Latch lock

Material

Boot

Polyurethan

Contact plating

2 µm Ag

Contacts

Brass (CuZn39Pb3)

Insert

Polyamide (PA 6.6 30 % GR)

Locking element

Zinc diecast (ZnAl4Cu1)

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Nickel

Strain relief

Polyacetal (POM)

Environmental

Approvals

Flammability

UL 94 HB

Standard compliance

IEC 61076-2-103

Protection class

IP 40

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Item information	Value
Contacts:	Silver pins
Series:	X
Pins:	3-Pol
Shell:	Nickel
Gender:	male
Shipping weight:	0,10 kg
keine preissuchmaschinen:	1
