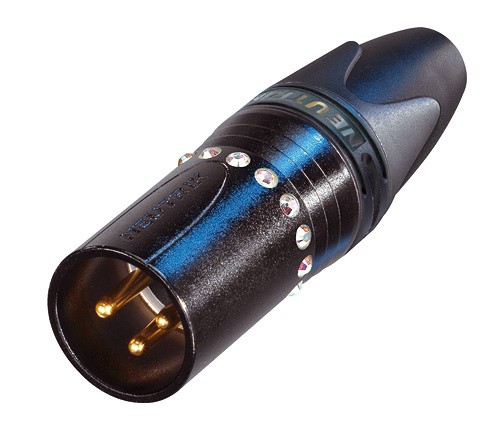

Neutrik NC3MXX-B-CRYSTAL XLR Cable Connector

SKU: NC3MXX-B-CRYSTAL
GTIN: 4049371067102
Category: Plugs & Jacks
Manufacturers: Neutrik

3 pole male XLR cable connector, black metal housing with CRYSTALLIZED^TM - Swarovski Elements, gold contacts

15,53 €

per 1 pcs incl. 19% VAT. , plus

Made to order

3 pole male XLR cable connector, black metal housing with CRYSTALLIZED^TM - Swarovski Elements, gold contacts

Features & Benefits

3 pole XLR XX series made with CRYSTALLIZED^TM - Swarovski Elements
Fancy, noble, valuable, attractive package - an eye catcher
Markiert mit dem einzigartigen Hologramm - garantiert ein originales und echtes Neutrik Produkt

Product

Title

NC3MXX-B-CRYSTAL

Connection Type

XLR

Gender

male

Electrical

Capacitance between contacts

? 4 pF

Contact resistance

? 3 m?

Dielectric strength

1,5 kVdc

Insulation resistance

> 10 G? (initial)

Rated current per contact

16 A

Rated voltage

< 50 V

Mechanical

Cable O.D.

3.5 - 8.0 mm

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Wiresize

max. 2.5 mm²

Wiresize

max. 14 AWG

Wiring

Solder contacts

Locking device

Latch lock

Material

Boot

Polyurethan

Contact plating

0.2 µm Au hard alloy over 2 µm Ni

Contacts

Brass (CuZn39Pb3)

Insert

Polyamide (PA 6.6 30 % GR)

Locking element

Zinc diecast (ZnAl4Cu1)

Shell

made with CRYSTALLIZEDTM - Swarovski Elements

Shell plating

Black chromium

Strain relief

Polyacetal (POM)

Environmental

Flammability

UL 94 HB

Standard compliance

IEC 61076-2-103

Protection class

IP 40

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Color:
Contacts:	Goldplated pins
Series:	crystalCON
Shell:	Black chromium
Gender:	male
Shipping weight:	0,10 kg
