Neutrik NC4MAH XLR Chassis Connector
Category
Manufacturer
Item no.
- NC4MAH-DON
Product weight
- 0,01 kg
Shipping weight
- 0,02 kg
Contacts
Series
Shell
Gender
Description

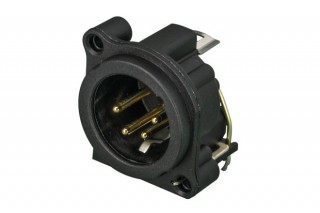

4 pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount, color coding possible
4 pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount, color coding possible
The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centres). New designed fork type contacts with hard gold plating and polished contact areas.
Features & Benefits
- Smallest XLR receptacles, highest packing density
- Plastic housing, steel latch lock
- Polished contact areas and hard gold plating
- Housing flammability UL94HB
Product
Title
NC4MAH
Connection Type
XLR
Gender
male
Electrical
Capacitance between contacts
? 7 pF
Contact resistance
? 6 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
6 A
Rated voltage
< 50 V
Grounding Options
Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1
Mechanical
Insertion force
? 20 N
Withdrawal force
? 20 N
Lifetime
> 1000 mating cycles
Wiring
Horizontal PCB mount
Locking device
Latch lock
Mounting direction
Rear mounting
Chassis shape
A
Mounting
A-Screw
Material
Contacts
Brass (CuZn35Pb2)
Shell
Polyamide (PA 6.6 30 % GR)
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
