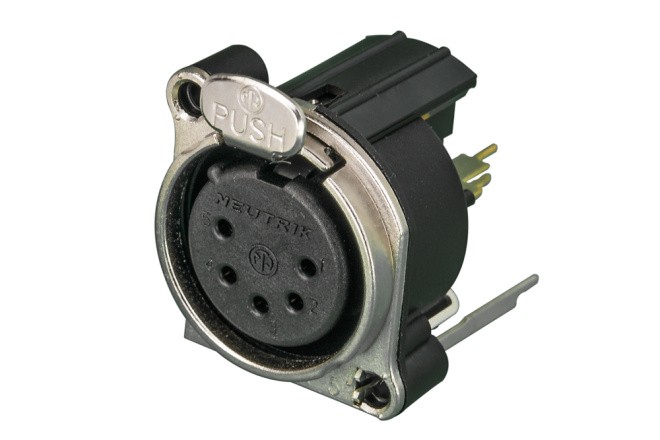

Neutrik NC5FBV XLR Chassis Connector

SKU: NC5FBV-DON

481,17 ₽

incl. 19% VAT. , plus

Must be ordered. Ready for shipment in 50 days after order.
Delivery time: ca. 8 weeks (DE - int. shipments may differ)

Please note the minimum purchase quantity of 50 Units.

Description
Reviews

5 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount

Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice.

Features & Benefits

Smallest XLR receptacles, highest packing density
Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
Fork type female contact
Housing flammability UL94HB

Product

Title

NC5FBV

Connection Type

XLR

Gender

female

Electrical

Capacitance between contacts

? 7 pF

Contact resistance

? 6 m?

Dielectric strength

1,5 kVdc

Insulation resistance

> 10 G? (initial)

Rated current per contact

3 A

Rated voltage

< 50 V

Grounding Options

Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1

Mechanical

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Wiring

vertical PCB mount

Locking device

Latch lock

Mounting direction

Rear mounting

Chassis shape

Mounting

A-Screw

Material

Contacts

Bronze (CuSn6)

Insert

Polyamide (PA 6.6 30 % GR)

Locking element

Steel Ck67

Ring

Zinc diecast (ZnAl4Cu1)

Flange

Metal

Environmental

Flammability

UL 94 HB

Standard compliance

IEC 61076-2-103

Protection class

IP 40

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Item information	Value
Series:	B
