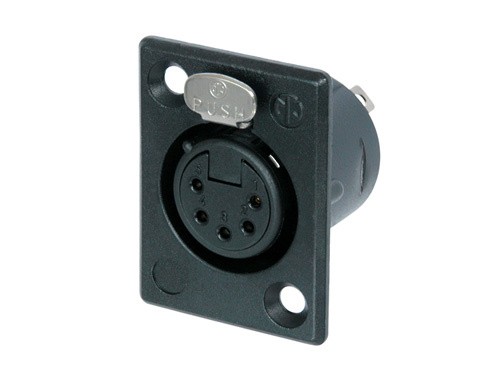

Neutrik NC5FP-BAG-1 XLR Chassis Connector

SKU: NC5FP-BAG-1

11,07 €

incl. 19% VAT. , plus

Made to order

5 pole female receptacle, solder contacts, black metal housing, silver contacts

Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring.

Features & Benefits

Smallest available hard wiring receptacles with large solder cups
Short female receptacle
Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32

Product

Title

NC5FP-BAG-1

Connection Type

XLR

Gender

female

Electrical

Capacitance between contacts

? 7 pF

Contact resistance

? 5 m?

Dielectric strength

1,5 kVdc

Insulation resistance

> 10 G? (initial)

Rated current per contact

7,5 A

Rated voltage

< 50 V

Mechanical

Insertion force

? 20 N

Withdrawal force

? 20 N

Lifetime

> 1000 mating cycles

Wiresize

max. 1.0 mm²

Wiresize

max. 18 AWG

Wiring

Solder contacts

Locking device

Latch lock

Mounting direction

Front mounting

Chassis shape

Material

Contact plating

2 µm Ag over 2 µm Ni

Contacts

Brass (CuZn39Pb3)

Insert

Polyamide (PA 6.6 30 % GR)

Locking element

Steel Ck67

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Black chromium

Environmental

Flammability

UL 94 HB

Standard compliance

IEC 61076-2-103

Protection class

IP 40

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C

Contacts:	Silver pins
Series:	P
Shell:	Black chromium
